Bicycle Turn & Stop Signals
Bicycle Turn and Stop Signals with Front and Rear Lights 1.3.4 (2022-03-28) • 9MB

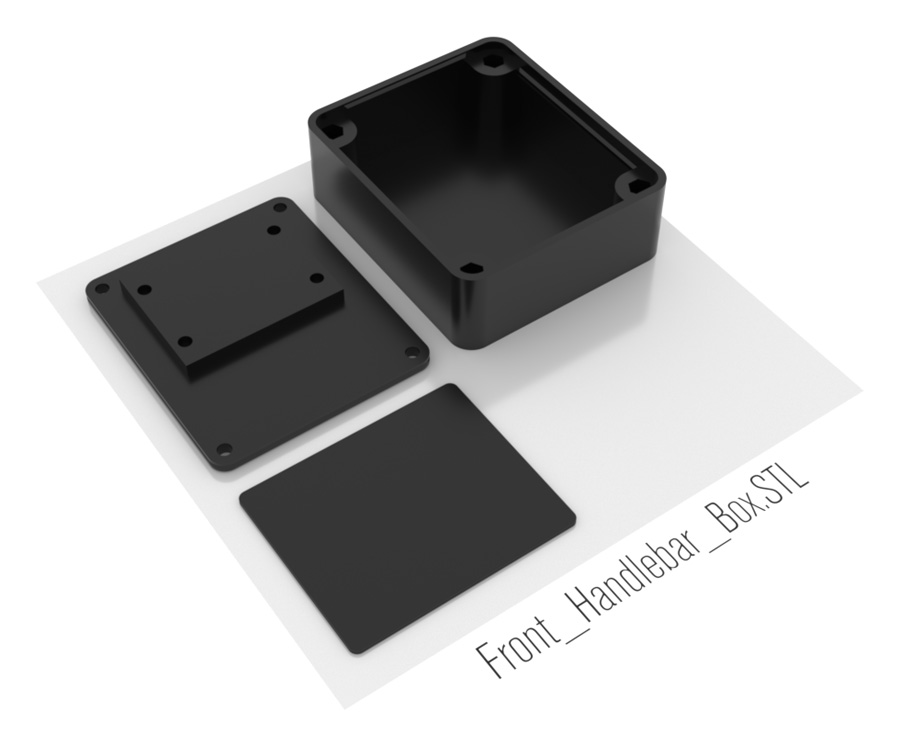

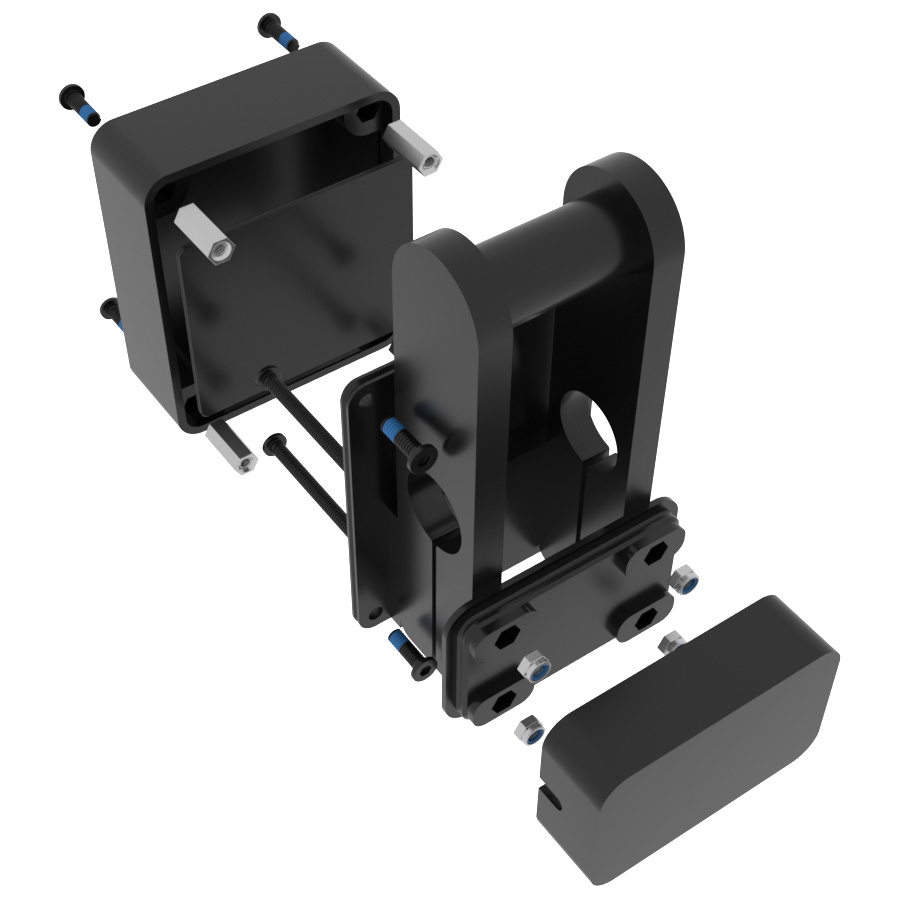

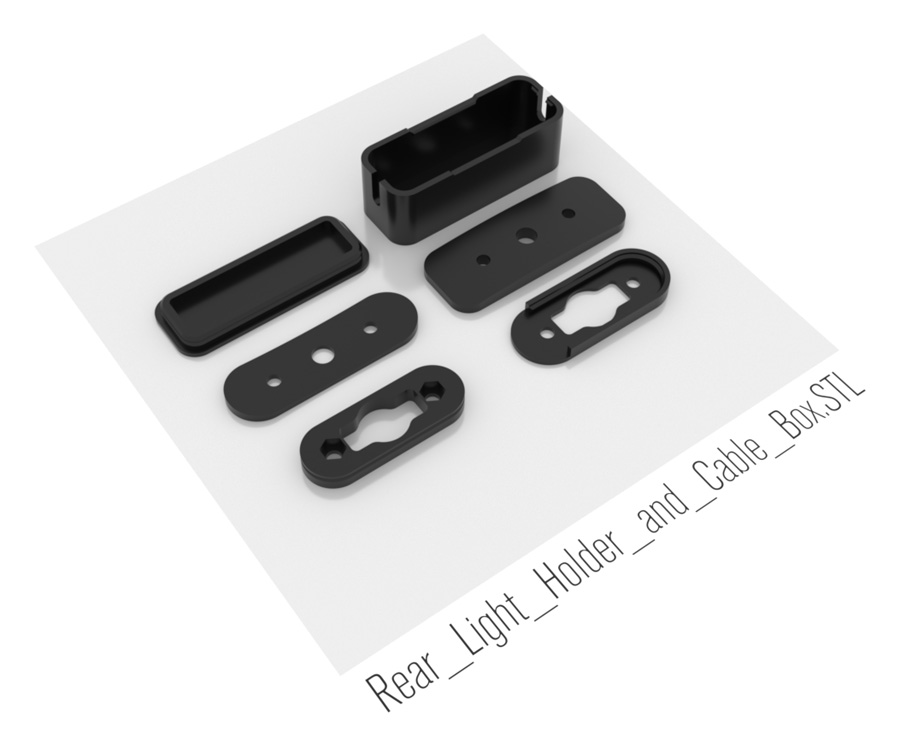

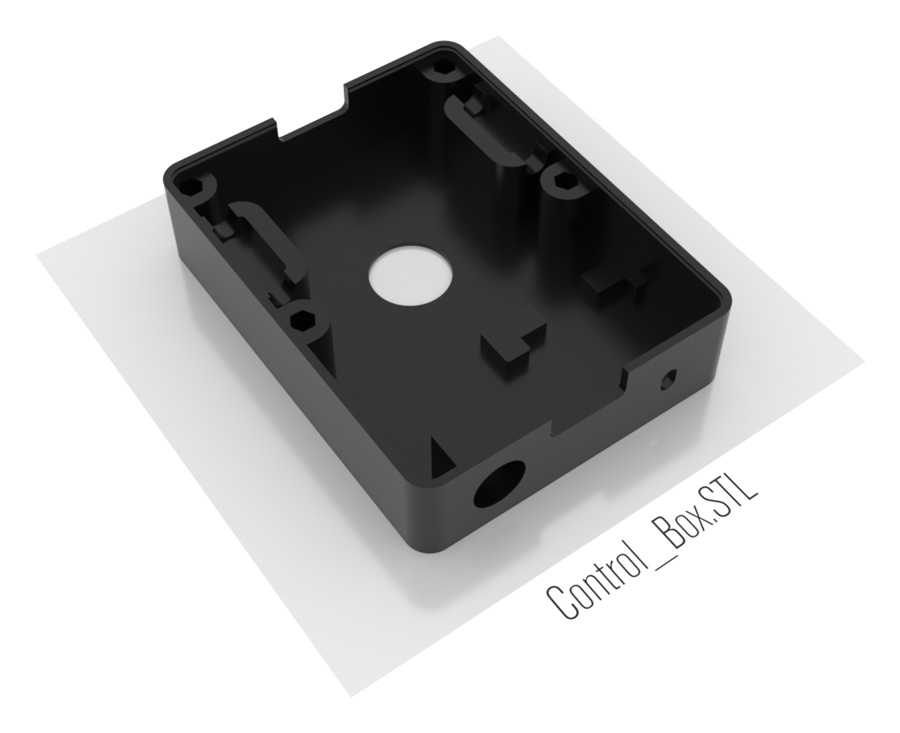

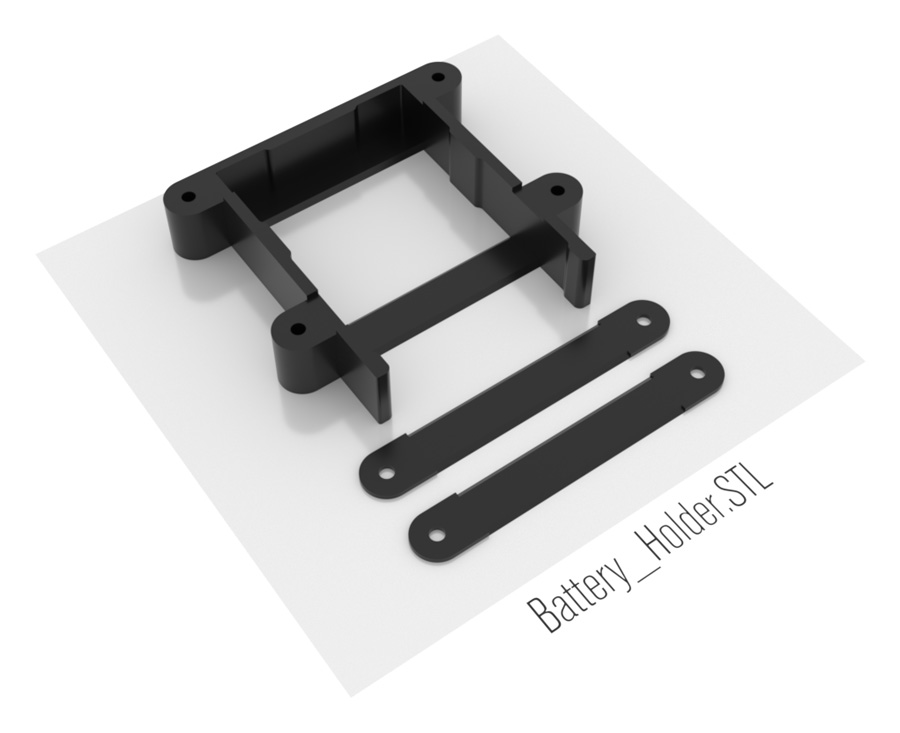

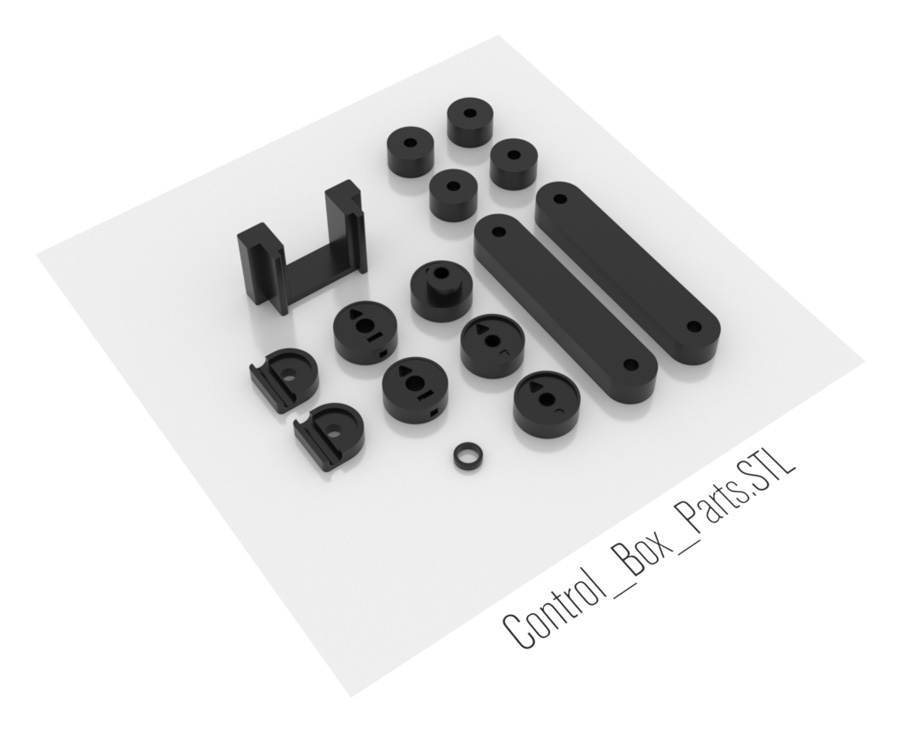

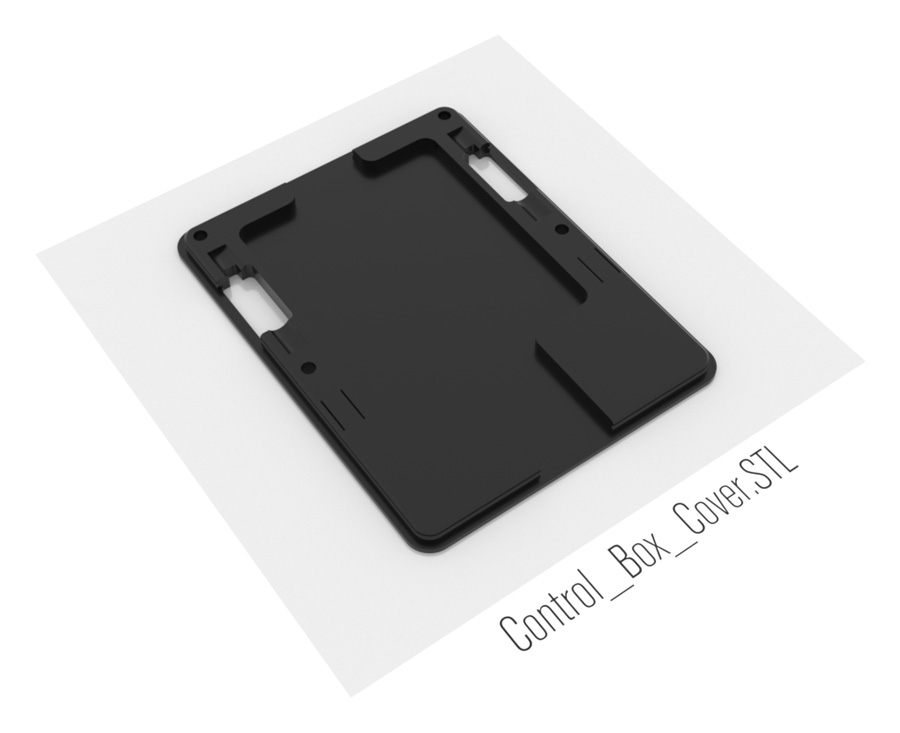

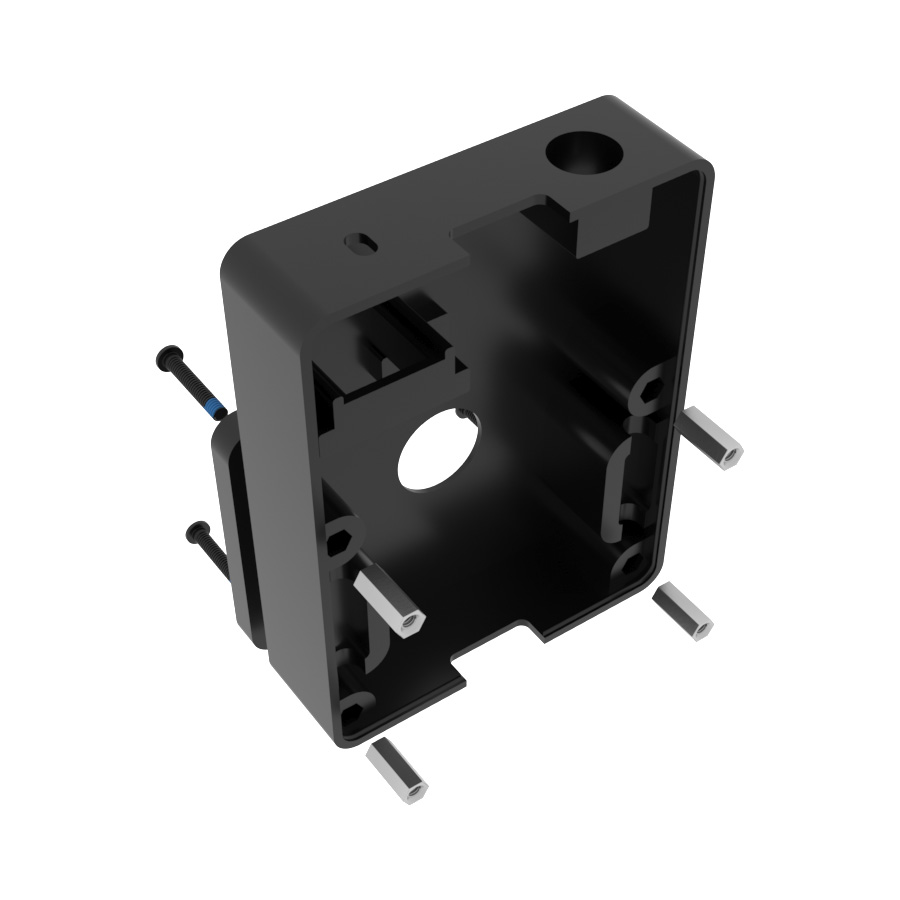

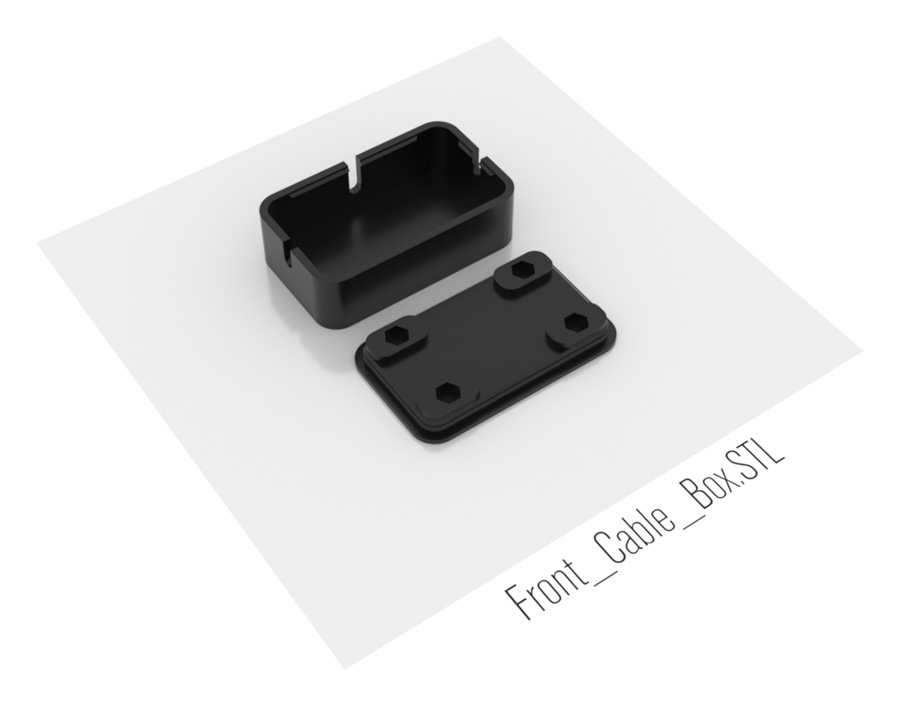

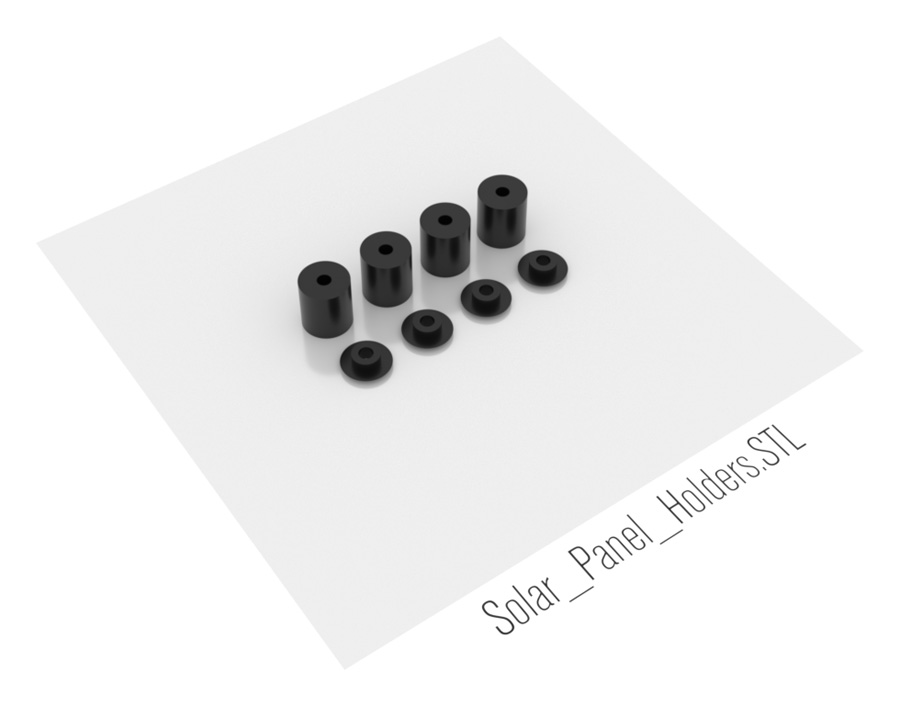

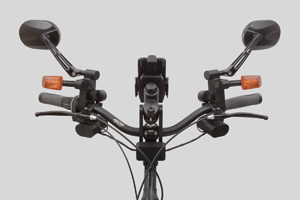

3D Printer STL files for bicycle turn and stop signals with font and rear lights. JocysCom-Bicycle.zip file size ~9MB.

Below you will find parts and tools, which will help you to add turn and stop signals to your bicycle. Not all tools, like multimeter or label printer, are necessary. If you noticed mistakes, have questions or suggestions, know better component (available in EU and US), please write or send link to info@jocys.com • Project on Thingiverse.com or Printables.com

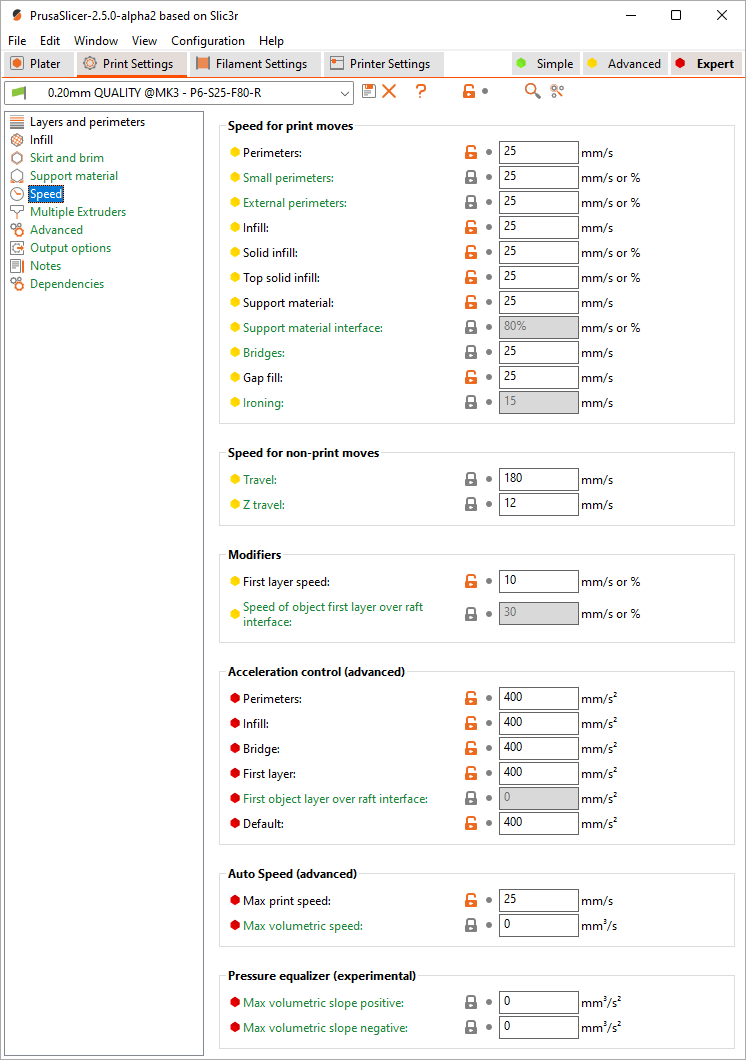

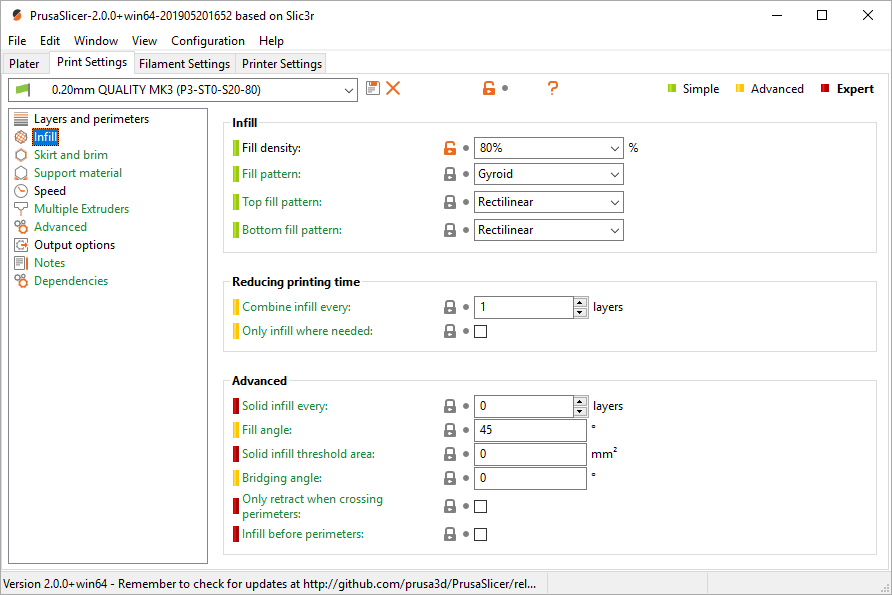

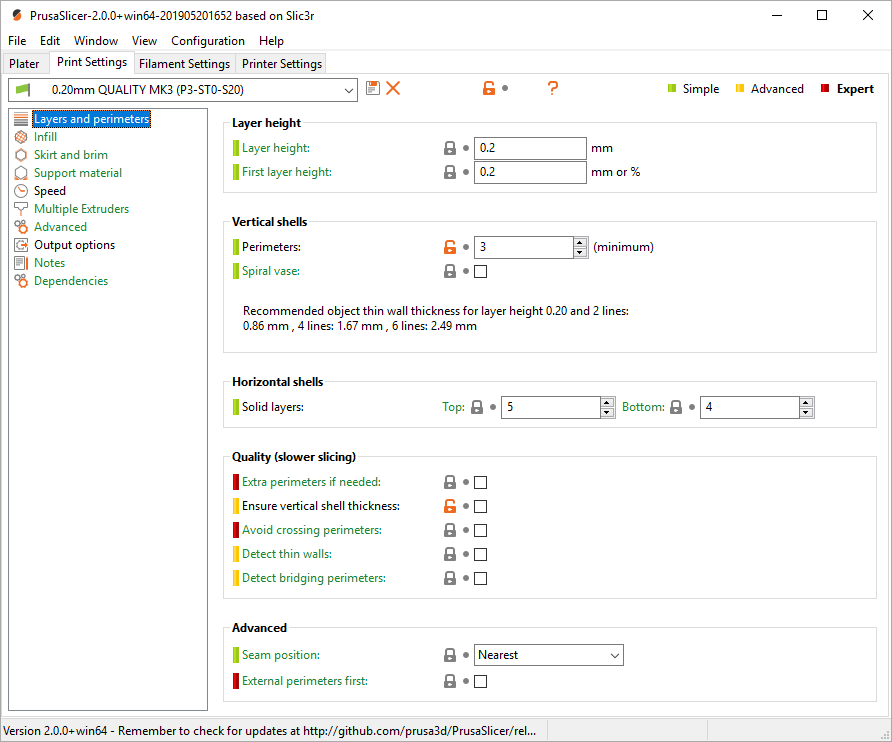

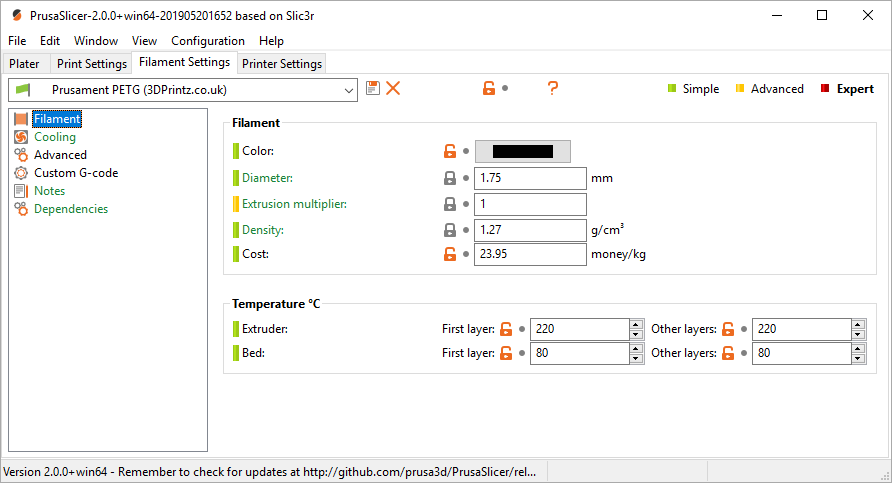

Parts were printed from PETG with Prusa3D i3 MK3 Printer. If your printer is not precise enough, printed parts may not fit into each other and may not look good. Spaces between some parts are 0.1mm only.

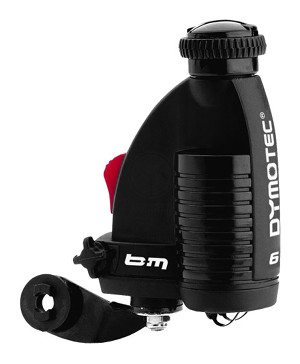

This project is based on 12 Volts. Bicycle dynamos and lights are, usually, 6 Volts. USB is 5 Volts. Be careful and don't mix wires.

If you made your own updates or changes, related to this project, please send me a link. I will add this link to your work on this page.

Parts were printed from PETG with Prusa3D i3 MK3 Printer.

The owner of this website is a participant in the Amazon EU Associates and Amazon Services LLC Associates Program...

Creative Commons License
BY • Attribution - Credit must be given to the creator
SA • ShareAlike - Adaptations must be shared under the same terms
This license allows reusers to distribute, remix, adapt, and build upon the material in any medium or format, so long as attribution is given to the creator. The license allows for commercial use. If you remix, adapt, or build upon the material, you must license the modified material under identical terms.

Jocys.com

Updates
Updates

1.3.4 (2022-03-28) • Handlebar Box Plate updated to make 2 bottom screws more accessible.

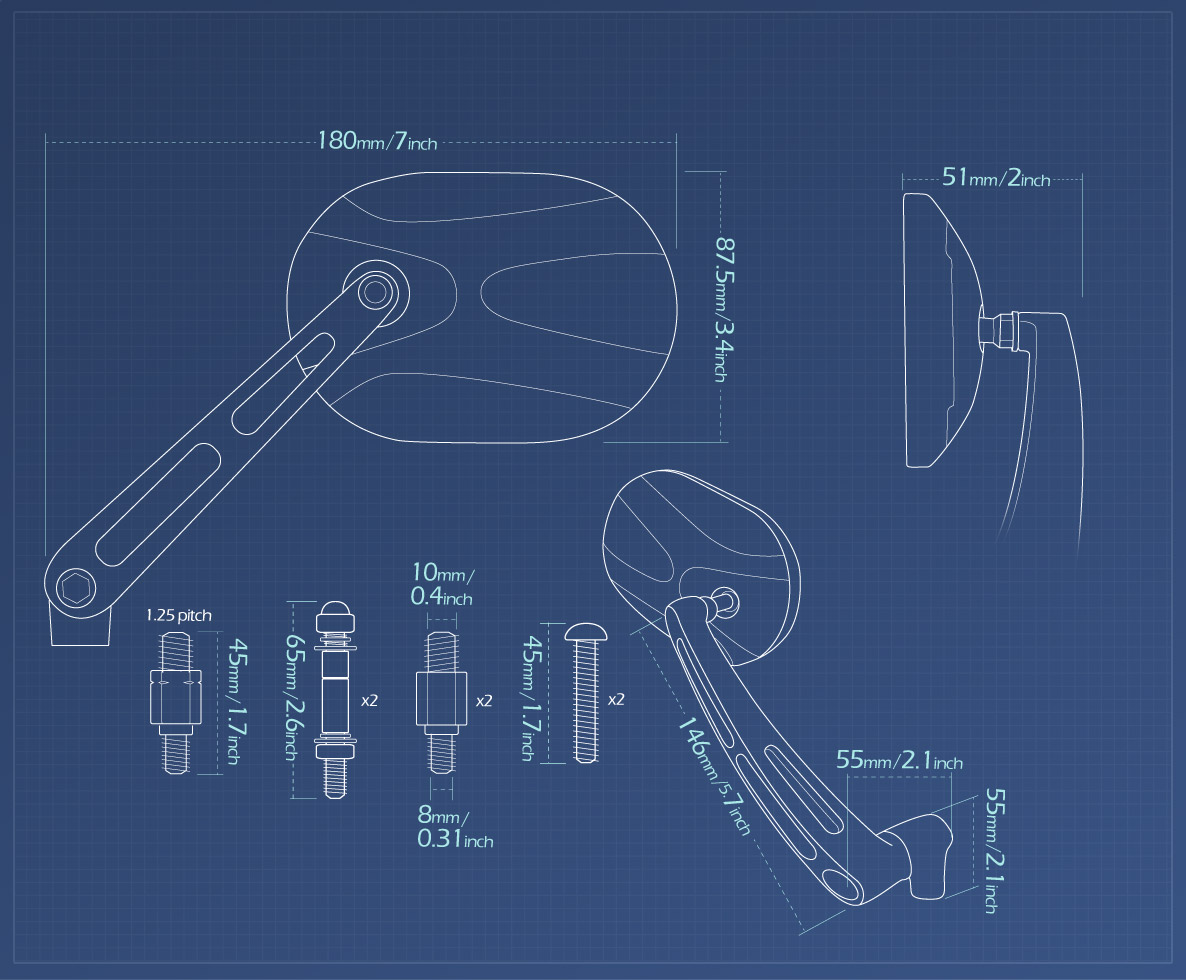

1.3.3 (2021-10-06) • Screw cover for Touratech folding mirror added.
1.3.2 (2021-06-17) • Cargo box parts (control box and rear light box) redesigned.

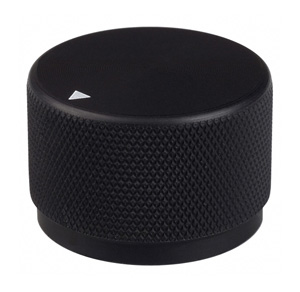

1.3.1 (2020-10-02) • Added knob for 6.1mm knurled shaft... to fit easier on 6mm plastic shaft.
1.3 (2019-10-28) • Handlebar center parts updated and handlebar box added.
1.2 (2019-09-06) • Indicator-mirror-button holders redesigned.
0.1 (2018-06-05) • ...

Jocys.com

Parts
Parts

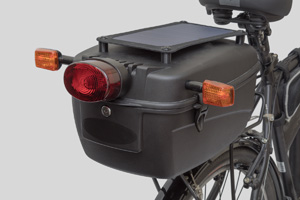

Turn Signals Mounted on M-Wave Box

2016-05M-WaveAmsterdam Cargo Box€32

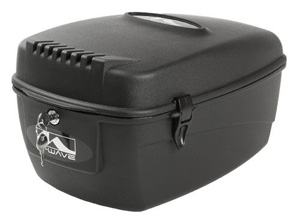

1 x M-Wave Amsterdam Hardbox.

High quality re-enforced plastic
Lockable with 2 keys
Dust and Water resistant
Fits on rear carrier rack
17 liter capacity

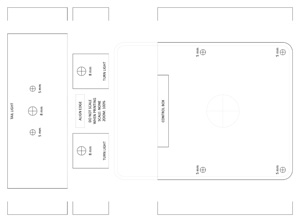

M-Wave Amsterdam Cargo Box Holes PDF File

A4 (210 x 297mm) file will help you to drill holes in right places.

1. Print
2. Cut
3. Puncture
4. Drill

Handlebar

2016-05NC-17254 Trekking Pro Handlebar€30

1 x NC-17 254 Trekking Pro Handlebar.

Material: trekking aircraft aluminum T6
position marks
Identification Number
Sweep: 16 °
Backsweep: 32 °
Height: 60 mm
Width: 618 mm
Weight: 343 grams
Handlebar clamp: 25.4 mm
Handlebar: 22.2 mm
Color: Black

Handlebar Stem

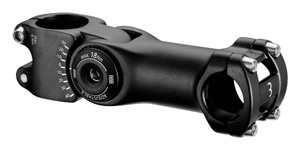

2019-05BBBHighSix BHS-28 Adjustable Handlebar Stem€30

1 x Adjustable Handlebar Stem.

Adjustable stem angle: -30 ... 40 °
Extension: 90/110/130 mm
Handlebar Diameter: 25.4 mm
Fork Pipe Diameter: 21.8 mm
Material: 3D forged 6061 T6 aluminum
Weight: 264 grams

Shifter

2019-05SRAMA3.0 COMP 7 Speed Twist Shifter€9

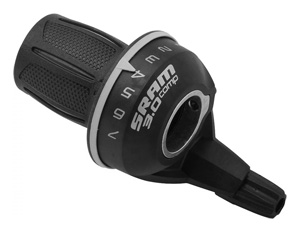

My bicycle is equipped with TS-30-A1 "SRAM 3.0 COMP 7 Speed Twist Shifter". You may not be able to fit 3D printed indicator-mirror holder perfectly between brake lever and different shifter model.

7 Speeds
1:1 Actuation Ratio
SRS technology for light and precise indexing
50mm moulded composite black finish

Toggle Switch

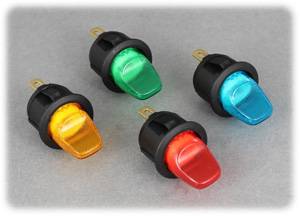

2016-05Ningbo Jietong ElectronicsE751 (MIRS-201)€5

2 x Amber color LED for left and right turn indicators.

These switches are more intuitive than Ulincos push buttons, especially, during cycling with gloves.

Operation type: ON/OFF
Pole/way: 1 pole / 1 way
Rating: 16A@12V
Lever type: Illuminated paddle
Terminals: 4.8mm blade
Illumination: Bulb
Panel hole size: 20mm dia.
Overall dims (inc. terminals): 23 (Dia) x 40 (D) mm

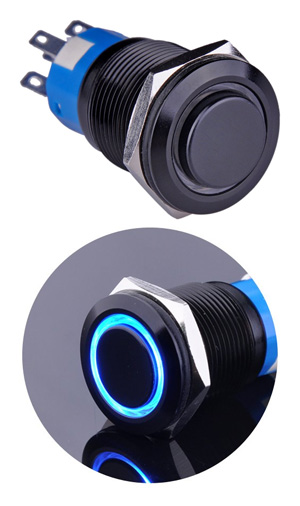

Push Button Switch

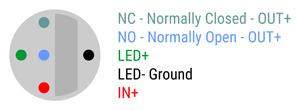

2016-05UlincosU19C2B Latching Push Button Switch€9

1 x White color LED for front and tail light.
1 x Blue color LED for hand brake levers.

When you lean bike against, for example, the wall, brake lever can enable brake light. Button  for hand brake levers turns-on/off power for brake light.

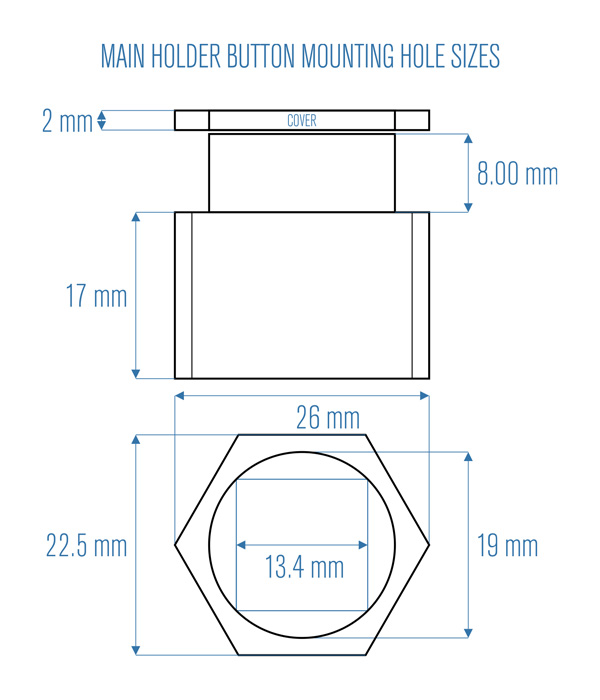

Head diameter: 22mm
Mounting hole size: 19mm
Depth inc contacts: 38mm
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC
LED voltage: 12V DC
LED color: Blue
Head shape: High flush
Enclosure material: Aluminium alloy
Protection level: IP67, IK10

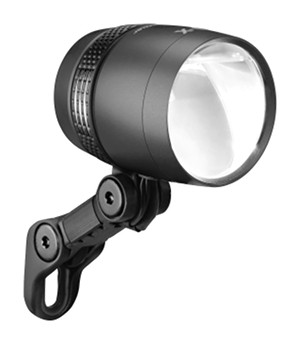

Lights

PhilipsOsramTop 10 LED Companies (2011)

HellaLight Requirements (2016-06-01)

Legal Regulations: 673_Legal_Requirements_Brochure_HELLA_EN.pdf

Automotive Bulbs: HASA_Bulbs_Catalogue_2012_LRes.pdf

LED Comparison: http://www.saving-star.com/smd-led-comparison

Indicators

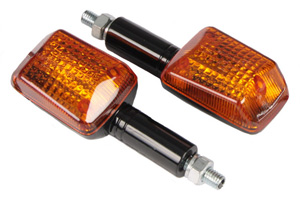

2016-05TDH (Jiaxing HongFa Motor Vehicle Fittings)Bike ItMini Amber Indicators€14

4 x Mini Amber Indicator.

Pair of indicators
Lens - 55 x 40mm
Length (ex thread) - 100mm
Depth - 35mm
Width - 40mm
Thread - 20mm long 8mm / M8 screw thread
Fitted with a 12V 23W BA9S Amber bulb

You should change standard halogen or incandescent bulbs to LED bulbs.
Some LED bulbs are larger than standard halogen or incandescent bulbs and will not fit inside.
Some LED bulbs are not as bright as halogen or incandescent bulbs (check specifications).

Front/Rear (Turn) Light:

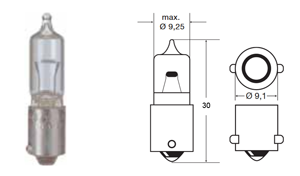

Bulb Shape: H21W
Base Shape: BA9s (⌀9.1mm)
Lumen: 440 lm

Power: 21 W
Voltage: 12 V
Visibility: 160° Horizontal, 30° Vertical
Luminous intensity: Amber, 250 - 1 200 cd

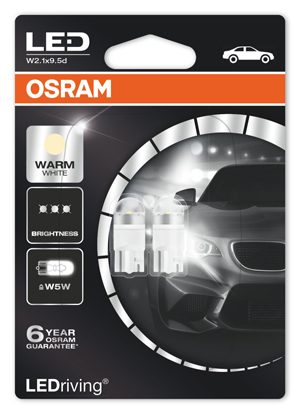

2019-05OsramLEDriving PREMIUM 3850WW€7

Not as bright as Bonlux LED bulb.

2019-05HSUNBA9S T4W 20 LED SMD 3014 12-24V LED Bulb€7

2019-05HSUNBA9S T4W 20 LED SMD 3014 12-24V LED Bulb€7

2019-05BonluxBA9S LED Bulb 12V€3

4 x Bonlux BA9S LED Bulb 12V.

Dimension: 10x30mm
Base Shape: BA9s
Lumen: 300lm

Power: 3 Watts
LEDs: 30pcs 3014 SMD LEDs
Input Voltage: 12-24V DC
Light Color: Cool white 6000k
Beam angle: 360 degree

2016-05OrafolORACAL 8300 Transparent Cal (034 Orange)€14

1 x White LED lamps can be covered with orange transparent film.

Transparent PVC film (80 micron) with UV stabilizers
32 glossy colours
For internally illuminated short- and medium-term designs on backlit glass surfaces
Solvent polyacrylate, permanent, transparent
Dry and wet application
Service life: 5 years
DIN EN 13501-1

LED Flasher Relay

2016-05PsmGoodsLED Flasher Relay€9

1 x LED flasher relay.

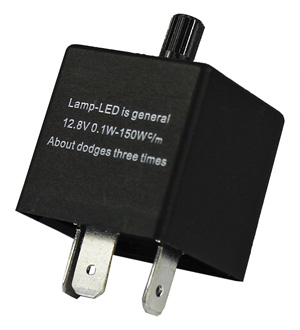

E.L.B type 3-pin adjustable LED light bulb turn signal adjustable speed flasher relay.

Size: 5x3x3cm
Specifications: 12.8V, 0.1W-150W c/m
6.3mm connectors

Stop and Tail Light

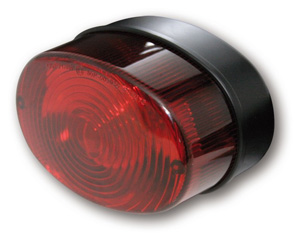

2016-05Shin Yo255-700 Universal Stop and Taillight OVAL€23

1 x Shin Yo Oval Universal Stop and Tail Light (12v 21/5w bulb).

Dimensions W x D x H: 103mm x 72mm x 68mm
Includes number plate light
Road legal

You should change standard halogen or incandescent bulbs to LED bulbs.
Some LED bulbs are larger than standard halogen or incandescent bulbs and will not fit inside.
Some LED bulbs are not as bright as halogen or incandescent bulbs (check specifications).

Rear (Brake/Tail) Light:

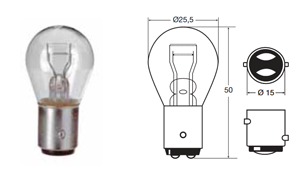

Bulb Shape: P21/5W
Base Shape: BAY15d (⌀15mm)
Lumen: 440/35 lm

Power: 21/5 W (High/Low)
Voltage: 12 V
Tail Visibility: 160° Horizontal, 30° Vertical
Tail Luminous intensity: Red, 4 - 42 cd
Stop Visibility: 90° Horizontal, 30° Vertical
Stop Luminous intensity: Red, 60 - 730 cd

2019-05HSUN1157 BAY15D P21/5W SMD 3030 12-24V LED Bulb€11

2019-05Sylvania1157R€10

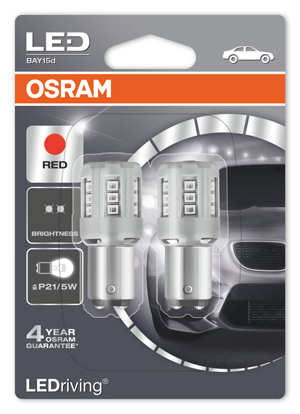

2019-05Osram1457R€12

Not as bright as LUYED LED bulb.

Base: BAY15d
ECE category: P21/5W
Nominal voltage: 12.0 V
Nominal wattage: 3.00 W
Power input tolerance: ±10 %
Luminous flux: 30/10 lm
Light color LED: Red
Diameter: 27.0 mm
Length: 52.5 mm
Lifespan B3: 1500 h
Lifespan Tc: 4000 h
Product type: Off-road

LUYED (China) 1157 3014 78-EX red LED bulb: Brighter than OSRAM LED bulb. All LED chips are shining in “tail only” mode. When you press brake lever (enable “stop” mode), all LED chips become slightly brighter. Difference between “tail only” and “stop” mode is minimal and not very distinguishable. You can increased difference between “tail only” and “stop” modes by dimming tail light slightly with 1 kΩ potentiometer.

1 x LUYED 1157 3014 78-EX red LED Bulb for tail light.

OSRAM (Germany) 1457R red LED bulb: Only 6 LED chips are shining in “tail only” mode. When you press brake lever (enable “stop” mode), another 12 LED chips start to shine. Not as bright as LUYED bulb in both modes, but difference between “tail only” and “stop” modes is more distinguishable without dimming tail light with 1 kΩ potentiometer. Currently I prefer LUYED with 1 kΩ potentiometer setup.

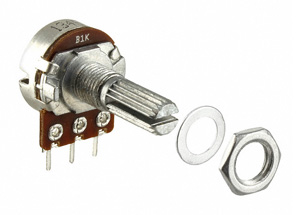

Potentiometer

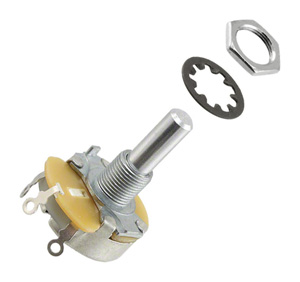

2016-05CTS026TB32R102B1A1 1 kΩMouser (EU)Digi-Key (US)€3

1 x 1 kΩ potentiometer for tail light.

Some LED bulbs have very small difference between “tail only” and “stop” modes. You can increase this difference by slightly dimming tail light with 1 kΩ potentiometer.

Series: 026
Potentiometer Type: Linear
Maximum Resistance: 1 kΩ
Power Rating: 5W
Electrical Taper: Linear
Mounting Type: Surface Mount
Termination Style: Solder Lug
Shaft Length: 25.4mm
Shaft Diameter: 6.35 mm
Tolerance: ±20%
Actuator Type: Round Shaft

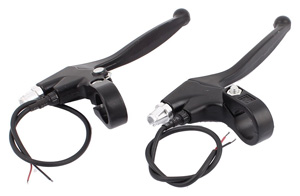

Hand Brake Levers

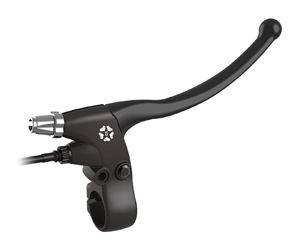

2016-05Star Union (Wuxing)Brake Lever€12

2 x E-bike brake lever.

If you know EU or US e-brake lever manufacturer, please send link to info@jocys.com.
I use "noname" brake levers closest to this model:

Model: 89PDD.BS68.A
Approvals: RoHS
Waterproof: IPX6
Size: L 170mm W 120mm H 38mm
Weight: 110g
Wiring: two core wiring
Materials: Aluminum Alloy

2014-08WASDO-Ring Switch Dampeners€15

4 x Blue o-ring (optional).

Stop light didn't turn-off with my "noname" brake levers sometimes. I added 2 blue o-rings under each switch to fix it.

0.4mm Reduction - Blue
0.2mm Reduction - Red

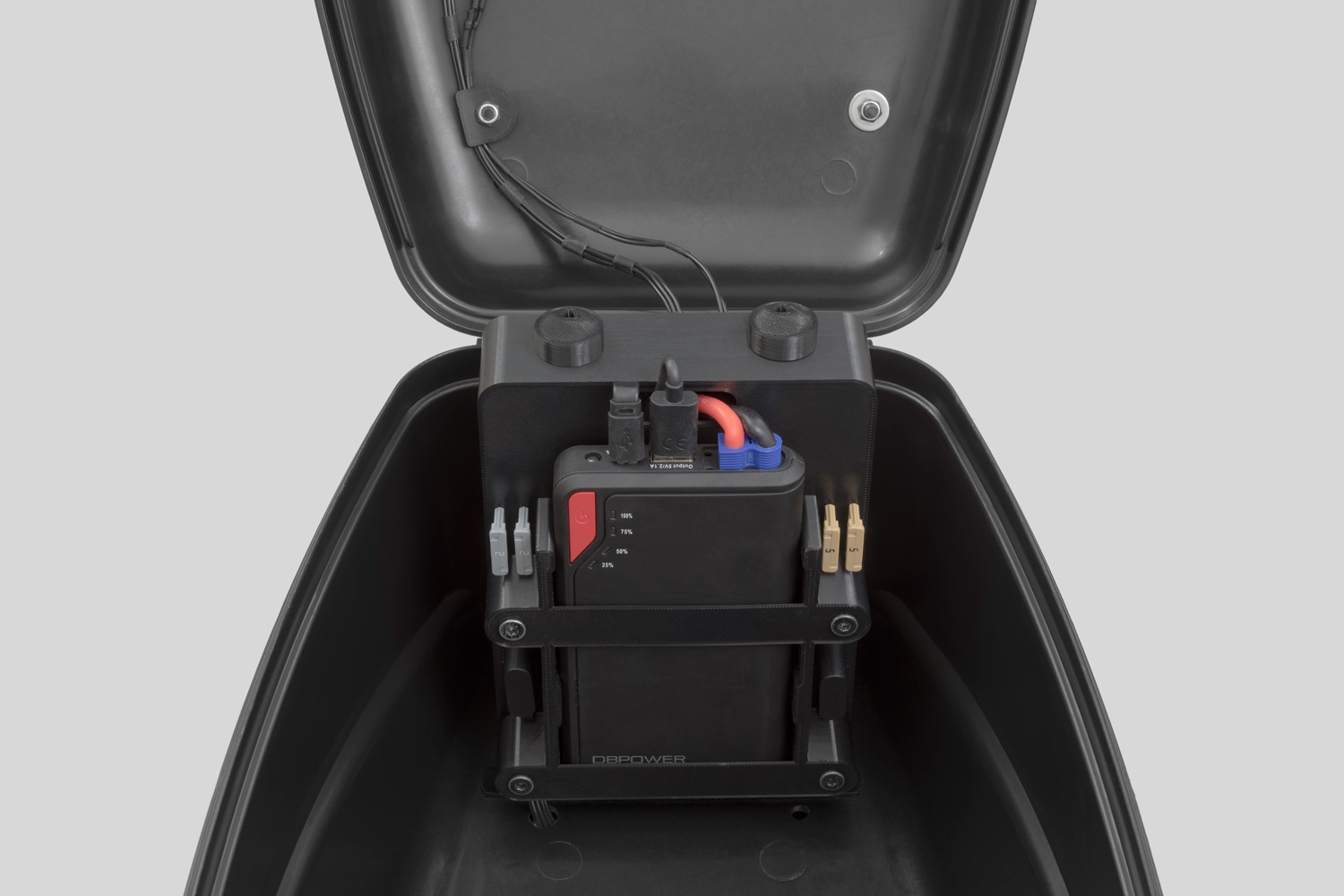

Rechargeable Battery

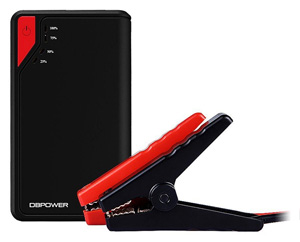

2016-05DBPowerPortable Car Jump Starter Battery€38

1 x DBPower Portable Car Jump Starter Battery.

1. Car Jump Starter: with heavy duty clamps and cables, it can jump start your vehicle (up to 2.5L gas engine) up to 15 times with 300A peak current.

2. Portable Battery Charger: with 8000mAh capacity, it can charge smartphones, tablets, and other devices at a speed up to 2.1A per port. Recharging process finishes in just 5 hours.

3. Safety Protection: the crocodile clamps have over current protection, short circuit protection, overload protection, over-voltage protection, over-charge protection.

4. What You Get: DBPOWER jump starter DJS40, jump cables, android USB cable, welcome guide, 3-year warranty and friendly customer services.

2016-05AmazonEC5 Female 10cm Adapter Wire€5

1 x EC5 Female 10cm Adapter Wire.

New jump cable version has box at the end of the cable. You will need to buy additional cable with EC5 female connector and add 6.3mm / 2.5 - 6.0mm² non-insulated male and female blade crimp terminal connectors at the ends.

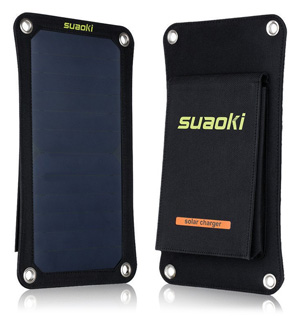

Solar Panel Charger

Voltaic SystemsSolar Panel KitsBattery PacksSolar Panels

Goal ZeroVenture Jump Power BankNomad 5 Portable Solar Charger

I used Chinese car jump starter battery and solar charger. Unfortunately, some Chinese products are not stably produced and may disappear unpredictably from the market. I found Goal Zero (US) Venture Jump power bank and Nomad 4 portable solar charger later. In the future, I will try to adapt current project to EU or US made power bank and solar charger.

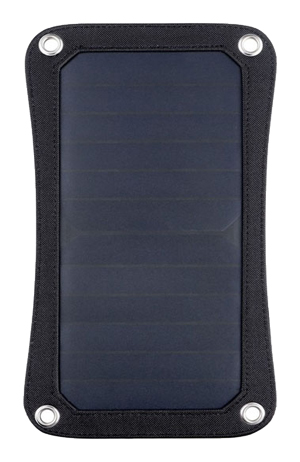

2016-05EceenSP-065W Solar Panel Charger€25

1 x Solar panel charger.

Hole diameters are 10mm.

Solar panel: 6.5V / 7W
Cells: SunPower
Max USB output: 5V/5W
Size:290*160*20mm
Weight:230g

Blade Fuse

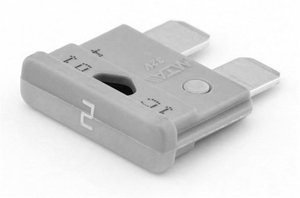

2016-0512voltplanetMTA UniVal Blade Fuse€0.21

All LED lights draw about 1A in my setup. I used 11A (0.5mm²) cables and 2A (Grey) fuse.

2016-05MTAUniVal 2A Blade Fuse€0.21

6 x 2A blade fuse (2 for lights and 4 as backup).

Amperage - Body Color

0.5A - Dark Blue
1A - Black
2A - Grey
3A - Violet
4A - Pink
5A - Beige
7.5A - Brown
10A - Red
15A - Blue
20A - Yellow
25A - Natural
30A - Green
40A - Orange

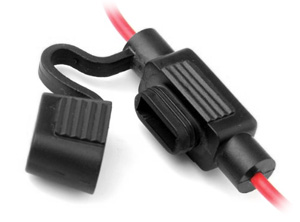

2016-05Blade Fuse Holder€2

2 x Blade fuse holder.

Second version, I bought, was made from harder plastic. To open cap easily, you need to push it sideways first.

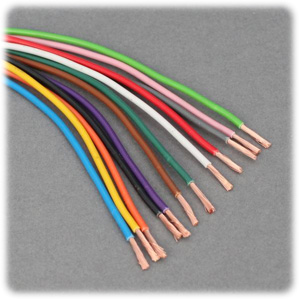

Cable

2016-0512voltplanetSingle 0.5mm² 11A€0.33

1 x 50m Reel of Single 0.5mm² 11A.

Manufactured to: ISO 6722:2006 (Class B)
Voltage rating: suitable for 12V & 24V systems (60V max.)
Nominal current rating: 11A
Maximum loading: 132W@12V, 264W@24V
No./size of conductors: 16/0.20mm
Conductor cross section: 0.5mm2
Maximum overall cable diameter: 1.7mm
Resistance per m at 20oC: 0.0371 Ω
Conductor material: Plain copper
Insulation material: PVC (hard grade)
Working temperature range: -40oC to +105oC (with brief excursions up to +120oC)

Connectors



48 x 2.8mm / 0.5 - 1.5mm² female.
32 x 2.8mm / 0.5 - 1.5mm² male.
6 x 6.3mm / 0.5 - 1.5mm² female.
3 x 6.3mm / 0.5 - 1.5mm² male.
1 x 6.3mm / 2.5 - 6.0mm² female for DBPower battery jump cable.
1 x 6.3mm / 2.5 - 6.0mm² male for DBPower battery jump cable.

~2m ... 3.2mm / 1.6mm Heat Shrink Tubing (2:1 ratio).
~1m ... 6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio).

2016-0512voltplanetNon-Insulated Male Blade Crimp Terminal Connectors€0.9

2.8mm / 0.5 - 1.5mm²3.2mm / 1.6mm Heat Shrink Tubing (2:1 ratio)
6.3mm / 0.5 - 1.5mm²6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio)
6.3mm / 1.5 - 2.5mm² • 6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio)
6.3mm / 2.5 - 6.0mm²6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio)

2016-0512voltplanetNon-Insulated Female Blade Crimp Terminal Connectors€0.9

2.8mm / 0.5 - 1.5mm²3.2mm / 1.6mm Heat Shrink Tubing (2:1 ratio)
6.3mm / 0.5 - 1.5mm²6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio)
6.3mm / 1.5 - 2.5mm² • 6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio)
6.3mm / 2.5 - 6.0mm²6.4mm / 3.2mm Heat Shrink Tubing (2:1 ratio)

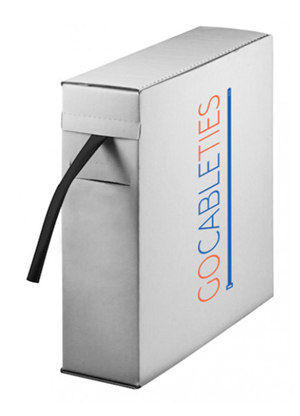

Heat Shrink Tubing

2016-0512voltplanetHeat Shrink Tubing€1-9

2016-05GoCableTiesHeat Shrink Tubing Mini Reels (7 Colours)€1-9

Heat shrink tubed packaged into a convenient mini reel box
Ratio size - 2:1
Material: Black Polyolefin - standard wall heat shrink tube
Internal diameters from: 1.2mm up to 25.4mm (Pre-shrinkage)
Colours: Black, Red, Green, Blue, Yellow, White, Clear

Mirrors

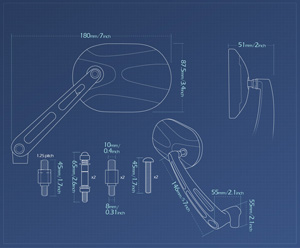

2016-06MagaziStark Mirrors MG-1850 €76

Magazi Stark Mirrors MG-1850.

• Package: a pair ( Left hand / Right hand )
• Aluminum housing and stem.
• Convex lens.
• Available colour: chrome, carbon, anodizing black satin…
• Available glass: blue lens, chrome lens, aluminum lens.
• Available stem: BON arm stem, MX arm stem, RING III arm stem, HB arm stem, TM arm stem.
• Available screw: M10, M8 regular or reverse and 5/16".


2016-06TouratechFolding Mirror M10x1.25 01-040-0771-0€26

2 x Touratech Rear-view mirror Adventure folding M10x1.25 01-040-0771-0.

Touratech plastic folding mirrors don't look as good as Magazi aluminum mirrors, but they are lighter and foldable. This makes easier to carry and store your bike in tight spaces.

To attach these mirrors you will need to replace M10x1.25 bolts with:

2 x M8x50mm flanged or standard screw with M8x17mm outer diameter washer.
2 x M8 10x8.2x12mm nylon spacer.
2 x M8x20mm outer diameter washer.
2 x M8 nylon locking nut.

• Can be set to eleven predefined positions
• Can be used left or right
• With ECE certificate
• Length 26 cm

Robust folding rear-view mirror for all motorcycles with a right-handed M10x1.25 thread

Two different basic positions and an adjustment range of 180 degrees with eleven different locking positions cover all eventualities for adjusting the mirror. The rear-view mirror can be folded during off-road travel and during transport to avoid any damage.

In addition, the swivel arm folds in case the motorcycle falls over. This effectively prevents breaking of the swivel arm. Adjustment screws allow setting of the pressure and force requirements of the ball joint and lock. This avoids any loosening of the joint during frequent use.

Washers and Bolts

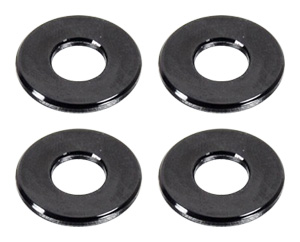

2016-05Pro-BoltAluminium Washer M8 20mm O/D€1

4 x M8 20mm Outer Diameter Washer.
Mirrors can be screwed with M8 40mm screws, included with Magazi MG-1850 mirrors.

Material: High Tensile Anodised Aluminium.
Part No.: LWA8-20
Material: Aluminium
Product Type: Washer
Weight In Gms: 0.93
Bar Code: 5053573533418
Country Of Manufacture: United Kingdom
Thread Diameter: 8mm
Outside Diameter: 20mm
Thickness: 1.6mm

2016-05AccuWasher M5 15mm O/D€0.3

8 x M5 15mm Outer Diameter Washer.

Material: A4 Grade Stainless Steel
Thread Diameter: 5.3mm
Outside Diameter: 15mm
Thickness 1.2mm

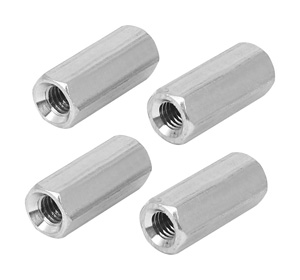

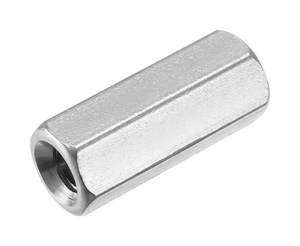

2016-05DBA HardwareM5 20mm hexagonal stud connector nuts€7

12 x M5 20mm Hexagonal Stud Connector Nut (main holders, handlebar box, control box).

Thread size: M5 20mm
Material: 304 stainless steel; weight: 23G
Package Content: 4Pcs x hex connector deep nut; main Color: Silver tone
Hex size: 8mm(Width)
Grade: 4.8

2016-05AccuPrecision Screws€0.6

2016-05Open Builds (US)Low Profile M5 Bolt 30mm€0.3

2016-05Ooznest (UK)Low Profile M5 Bolt 30mm€0.3

4 x M5 10mm Low Profile Screw (main holders).
8 x M5 15mm Low Profile Screw (handlebar box).
4 x M5 30mm Low Profile Screw (control box).
6 x M5 30mm Low Profile Screw (rear light holder, solar panel holders).
2 x M5 35mm Low Profile Screw (solar panel holders).
4 x M5 40mm Low Profile Screw (battery holder).
4 x M5 55mm (or 50mm) Low Profile Screw (front box).
2 x M5 60mm Low Profile Screw (main holder).

Material: Alloy Steel
Lenght: 6-65mm
Thread Pitch: 0.8mm
Hex Head: 3mm
Thickness 1.5mm

2020-01Wera Tools3950 PKL L-key (05022703001)€7

1 x 05022703001 - for M5 screws.

Hex Head: 3mm
Size: 123 x 21 mm

2016-05Pro-BoltM5 Nyloc NutM8 Nyloc Nut€0.2

4 x M8 Nyloc Nut.
18 x M5 Nyloc Nut.

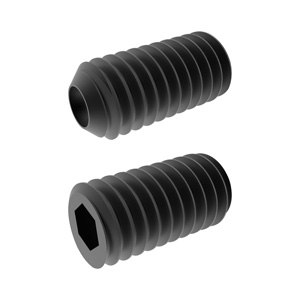

2016-05AccuM3 8mm Cup Point Grub Screw (DIN 916)€0.5

2 x M3 8mm Cup Point Grub Screw (DIN 916) for knob.

Cup Diameter: 1.15mm-1.4mm
Finish: Chemical Matte Black
Length: 8mmv Manufacturing Standard: DIN 916
Material: A4 Stainless Steel (Black)
Min Socket Head Depth: 1.2mm
Pitch: 0.5mm
Socket Head: 1.5mm (1.52mm-1.58mm)
Thread Size: M3 (3mm)

2016-05AccuM3 Square Nut (DIN 562)€0.5

2 x M3 Square Nut (DIN 562) for knob.

Finish: Chemical Matte Black
Manufacturing Standard: DIN 562
Material: A4 Stainless Steel (Black)
Pitch: 0.5mm
Thickness: 1.8mm
Thread Size: M3 (3mm)
Width: 5.5mm

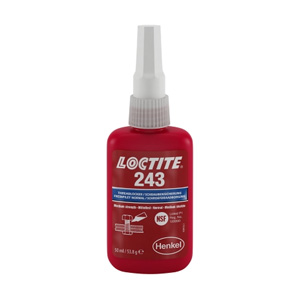

2019-01HenkelLoctite 243€6

1 x Loctite 243 for few screws.

Do not apply too much - I could not unscrew one bolt and broke plastic.

General purpose medium bond strength threadlocker.
Secures and seal bolts, nuts and studs to prevent loosening due to vibration.
Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses.
Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces).
Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids.
Permits disassembly with hand tools for servicing.
P1 NSF Reg. No.: 123000

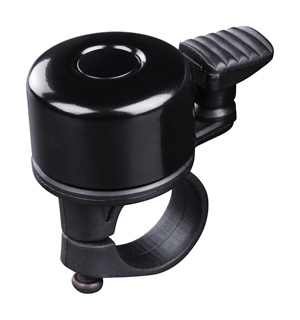

2019-01Hama00178113 Bicycle Bell€4

2 x Hama 00178113 bicycle bell.

Bicycle bell for greater road safety with a plastic holder for all common bicycle handlebars.

Colour: Black
Material: Aluminium Alloy

Front Light for 12v DC Supply

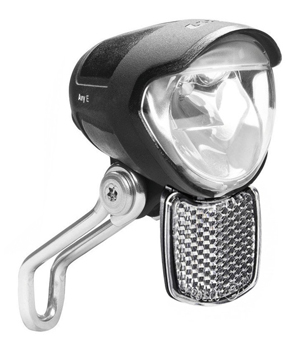

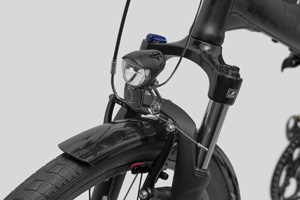

2017-01Busch + MüllerLumotec AVY E€20

1 x Busch + Müller Lumotec AVY E.

40 Lux
Suitable for 6-42V DC supply
Close range light
Clip-on reflector
Rear Light Contacts (RLC)
Without switch (always on or switchable through E-bike console)

Alarm

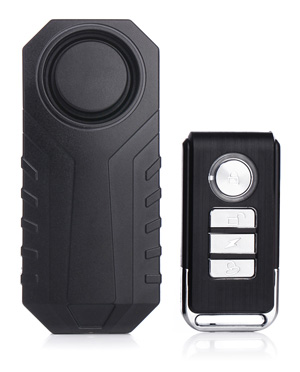

2019-01King SerryFR4 KS-SF22R Alarm€10

1 x FR4 KS-SF22R Alarm.

Can fit into handlebar box (added in version 1.3).

Alarm Volume: 113dB
Adjustable Sensitivity Level: 7
Waterproof: IP55 Loudspeaker
Bell Sound Types: 6
Batteries: 3 x 1.5V AAA (included)
Remote Controller: 1 (included)
Storage Temperature: -30℃-+70℃
Alarm Host Size: 65mm*45mm
Remote Controller: 60mm*30mm
Manual

Parts (Optional)
Front Light for 12v DC Supply

2017-01Busch + MüllerLumotec IQ-X E€95

150 Lux
Suitable for 6-60 V DC supply
Extensive beam pattern
Close range light
Daytime running light
Requires at least 7.5 W nominal output of the drive system's light connection

Dynamo Rear Light

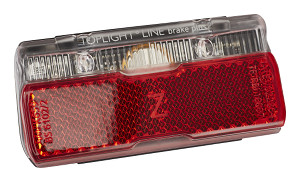

2017-01Busch + MüllerTopLight Line Brake Plus€28

• 2 high power LEDs inside the 90 mm LineTec light strip (transparent glass, shines red).
• Super bright with 320° visibility.
• Standlight (powered by capacitor, no batteries required), deactivates automatically after 4 minutes (parking function) or manually.
• Only 53 g, very slim, 94 x 45 x 16.5 mm.
• Integrated large Z reflector.
• Mounting distance 50 or 80 mm.
• Mark of approval F.

Grips

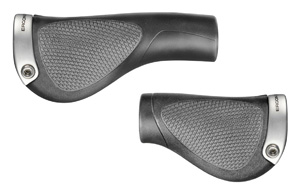

2016-06ErgonGP1 Touring €34

The original ergonomic grip. The GP1 sets the Worldwide standard in ergonomic comfort, materials, and quality. The GP1 eliminates numb hands, aching fingers, and tired forearms. The uniquely shaped grip body is made from 100% German, TÜV-certified rubber compounds of the purest quality – with infused Medical-grade white mineral oil for improved flexibility and durability. A forged aluminum clamp allows the grip to be adjusted for perfect fit, can be easily readjusted, and eliminates twisting once installed. (Carbon bar compatible).

Shifter

2019-05SRAMA3.0 COMP 7 Speed Twist Shifter€9

My bicycle is equipped with TS-30-A1 "SRAM 3.0 COMP 7 Speed Twist Shifter". You may not be able to fit 3D printed indicator-mirror holder perfectly between brake lever and different shifter model.

7 Speeds
1:1 Actuation Ratio
SRS technology for light and precise indexing
50mm moulded composite black finish

Saddle

2019-05Evan CyclesFWE Super Comfort II Memory Foam Saddle€38

Water resistant cover material.
Memory foam padding.
Shock absorbing elastomer springs. Arctech Suspension: the saddle rails are suspended away from the base to allow for a small amount of flex for shock absorption.
Zone cut out: central relief cut out in plastic base for pressure relief.
Dual Density Base: softer plastic in the base placed under the sit bones to help absorb vibrations.
Reflective rear panel.
Steel rails
Size: 272 x 208 mm
Weight: 910g

Seatpost

2019-05SR SuntourSP12-NCX€60

Travel: 50mm
Design: dia. 31.6 or 27.2mm w/ 25mm setback
Note: Hard spring, soft spring, 350 or 400mm length
System: Parallelogram system
Suspension system: Internal Coil with preload adjust/steel bushing parallelogram

Pump

2019-05SpecializedAir Tool Switch Comp Pump€16

SwitchHitter head works on Schrader or Presta valves with no disassembly.
Shows pressure on a rotatable gauge.
Durable plastic barrel with aluminium shaft to reduce flex and improve efficiency.
Plunger locks to body chamber with a simple twist for secure storage.
Water bottle boss mount included.
Max pressure: 120 PSI (8.3bar).
Volume-per-stroke: 48cc

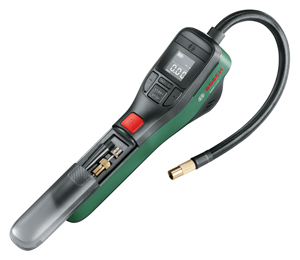

2019-05BoschEasyPump€59

Inflation of up to 10.3 bar with real-time measurement and autostop function.
Ideal for inflating tyres (car, motorcycle, bike), balls, and smaller water sports equipment.
Everything ready at hand: various adapters are neatly stored in the tool handle.
Intuitive and practical: easy-to-use, ergonomic, and small design with big display.
Integrated battery and USB-C® charging, brightly illuminated by LED light.

Adjustable DC/DC Converter

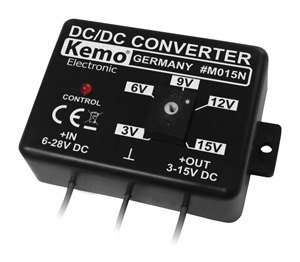

2017-01KemoM015N Adjustable DC/DC Converter€12

For converting 12V to 6V if you want to use 6V lights.

Input voltage: 6-28 V(DC)
Output voltage adjustable: 3-15 V(DC) (electronically stabilized)
Note: The input voltage must be at least 3V higher than the adjusted output voltage.
Max. output current: 1.5A
Max. dissipation: ~3W without heat sink, ~10W with heat sink (not enclosed).
Dimensions: ~60x45x20mm (without fastening straps).

Dynamo

NiceLite LED Cycle Dynamo Bulbs

2017-01Busch + MüllerDymotec 6 Dynamo€32

High output tyre dynamo (6 volt, 3 watt) with approx. 40 % efficiency. The position to the tyre as well as the contact pressure can be aligned perfectly with two easy adjustments. With easy touch trigger: a quick press of the finger suffices, and the dynamo pivots toward the tyre. Less expensive than Dymotec S12 (12V, 6.2W). Available for either right or left side mounting. Dymotec 6 can power Halogen or LED bulbs:

2.4W / 6V (headlight) + 0.6W / 6V (taillight) bulb. Total: 3W.

or

3W / 6V single (headlight) bub.

• 6 Volt / 3 Watt
• Unique efficiency: approx. 40%
• Position and contact pressure adjustable
• Separate versions for mounting to the left or right of the bicycle

A special separate roller with high alloyed steel brushes is available for temporary use under extreme conditions. During rain, slush, snow or ice it works with optimised contact pressure and maximal traction – gentle to the tyre and self-cleaning.

Dynamo Power

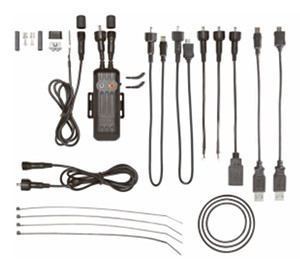

2017-01Busch + MüllerE-Werk €95

Power without mains
For all those that do not want to do without mobile phone, GPS, MP3 player or other electronic devices while cycling, Busch & Müller has developed the bike-mobile E-WERK. Connected to a hub dynamo; the energy is made useable to charge and/or power mobile devices.

• Voltage and current adjustable
• Universal connections (e.g. USB)
• Extensive accessories
• Splash- and rainwater-proof

Universally usable
With this dynamo-connected, universal powering device, voltage (up to 13.3 V) and current (up to 1.5 A) can be adjusted variably in small increments. It charges at velocities of approx. 8 km/h and faster. At only 15 km/h it charges as quickly as standard mains connected chargers. It can be fed with up to 50 V DC, so that operation with an e-bike or car battery is possible as well.

Connection options of the E-WERK
Universal connections for USB, Mini USB, Micro USB. 2 free cables for individual connections. With special plugs for SON and Shimano hub dynamos. Watertight cable screw joints.

Headlamp

You should change standard halogen or incandescent bulbs to LED bulbs.
Some LED bulbs are larger than standard halogen or incandescent bulbs and will not fit inside.
Some LED bulbs are not as bright as halogen or incandescent bulbs (check specifications).

Headlight (High/Low Beam) Light:

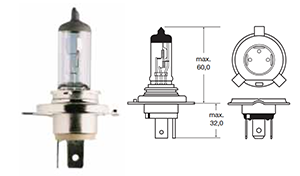

Bulb Shape: H4
Base Shape: P43t
Lumen: 2000 lm
Power: 60/55 W (High/Low)
Voltage: 12 V
Low Visibility: 90° Horizontal, 30° Vertical
Low Luminous intensity: White, 86 250 - 101 250 cd (
High Visibility: 10° Horizontal, 10° Vertical
Low Luminous intensity: White, 86 250 - 430,000 cd

2019-05Philips11342ULWX2€72

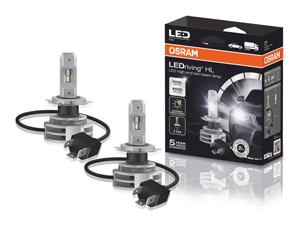

2019-05Osram9726CW€98

Base: P43t
ECE category: H4
Nominal voltage: 12 /24 V
Nominal wattage: 14.00 W
Luminous flux: 1517/1258 lm
Color temperature: 6000 K
Light color LED: Cool white
Length: 203.0 mm
Diameter: 18.0 mm
Lifespan B3:2500 h
Lifespan Tc: 5000 h
Product type: Off-road

You should change standard halogen or incandescent bulbs to LED bulbs.
Some LED bulbs are larger than standard halogen or incandescent bulbs and will not fit inside.
Some LED bulbs are not as bright as halogen or incandescent bulbs (check specifications).

Headlight (Daytime Running Lamp) Light:

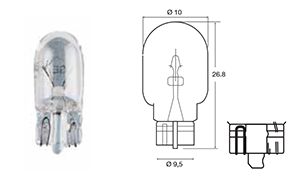

Bulb Shape: W5W
Base Shape: W2.1x9.5d
Lumen: 35 lm
Power: 5 W
Voltage: 12 V
Visibility: 90° Horizontal, 30° Vertical
Luminous intensity: White, 400 - 1 200 cd

2019-05Osram2850WW€12

Base: W2.1x9.5d
ECE category: W5W
Nominal voltage: 12.0 V
Nominal wattage: 1.00 W
Luminous flux: 70 lm
Color temperature: 4000K (Warm white)
Diameter: 10.0 mm
Length: 26.8 mm
Lifespan B3: 2500 h
Lifespan Tc: 5000 h
Product type: Off-road

Jocys.com

Tools
Tools
3D Printer

2018-05Prusai3 MK3€750

• Print technology: Fused Filament Fabrication (FFF) / Fused Deposition Modeling (FDM).
• 0.4mm nozzle (easy changeable) for 1.75 mm filament.
• Build volume 11,025 cm3 (25 x 21 x 21 cm).
• Layer height (layer resolution) from 0.05 mm (50 microns).
• Accuracy: 0.01 x 0.01 x 0.005 mm (10 x 10 x 5 microns).
• Max extruder temperature: 280 °C.
• Max heated bed temperature: 120 °C.
• Supported materials: PLA, ABS, PET, HIPS, Flex PP, Ninjaflex, Laywood, Laybrick, Nylon, Bamboofill, Bronzefill, ASA, T-Glase, Carbon-fibers enhanced filaments, Polycarbonates...

• Integrated LCD and SD card controller (8GB included).
• Automatic mesh bed levelling.
• Heatbed with cold corners compensation (warpless 3D printing from any material).
• Automatic skew axes compensation.
• Hassle free PEI print surface (no glass, no glue, no ABS juice).
• Easy multicolor printing based on layer height.
• 1 kg silver PLA filament included.
• Removable magnetic spring steel sheet with PEI surface.
• EINSY RAMBo motherboard.
• Silent Trinamic drivers with 256 microstepping.
• Faster printing: 200+ mm/s.
• Sensorless homing for X and Y axes.
• Detection and recovery of shifted layers.
• Improved frame rigidity with aluminium extrusions.
• Power loss detection and recovery.
• Better cooling from both sides of the object.
• Optional WIFI with Octoprint interface included.
• Bondtech extruder drive - filament is driven from both sides.
• Optical filament flow sensor with filament presence and movement detection.
• Automatic loading of filament when filament is inserted.
• Detection of jammed extruder with pause print.
• Both extruder cooling fan and print cooling fan detect RPM. When extruder fan is blocked, the printer will stop to prevent damage of extruder. Same applies for the print cooling fan.
• Extra silent Noctua fan.
• New P.I.N.D.A. 2 probe with included thermistor - faster temperature calibration.
• Room ambient temperature sensor.

Uninterruptible Power Supply (UPS) (Optional)

2015-10APCBack-UPS Pro€120-300

You need to disconnect "PSU Power Panic" (black and white twisted) cable from Prusa3D i3 MK3 board. Otherwise, Prusa printer will restart after each power failure.

The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.

Wire Stripping and Cutting Tools

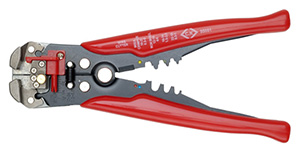

2016-05C.K Tools495001 Wire Stripper€19

Stripping: 0.2 - 6.0mm²;
Cutting: HRC 40 - 50;
Crimping: 0.5 - 6.0mm² insulated and non-insulated terminals

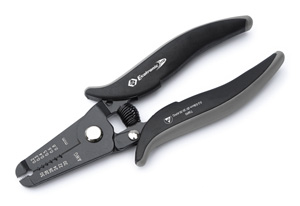

2016-05C.K ToolsWire Stripping Pliers T3894€18

For safe and damage-free stripping of fine, insulated solid wires in applications where it is critical to prevent damage from electro-static charge. Suitable for cutting soft copper wires.

Stripping capacities mm: 0.4, 0.5, 0.6, 0.8, 1.0, 1.3
Stripping capacities AWG: 26, 24, 22, 20, 18, 16

2016-05C.K ToolsSide Cutters T3887€14

Precision side cutters for fine cutting applications Sharp, precision ground cutting edges with an extra full flush cut Suitable for cutting soft copper wires of up to 1.6mmØ / 14AWG Tapered and relieved head for access in narrow and confined spaces.

Non-Insulated Terminal Crimping Tool

Choosing a ToolPressmaster

2016-05Laser1913 Crimping Pliers€33

You can crimp terminals with “C.K 495001”, but with “Laser 1913” it is much easier and faster.

For use on non-insulated terminals, the ratchet motion assures complete crimping. Forged jaws (spare jaws Part No 2927).

For use with non-insulated terminals:
  0.5-1.0mm², 1.5-2.5mm², 4-6mm²
  20-18AWG, 16-14AWG, 12-10AWG

Rubber grip handle for comfortable use.
Spare jaws available - Part No. 2927.
Ratchet motion assures complete crimping.
For insulated terminals use Part No. 0884.

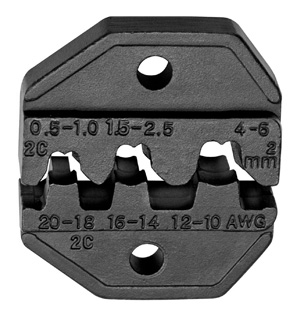

2016-05Klein ToolsVDV205-036 Die Set€16

Induction hardened high-carbon steel

For use with non-insulated terminals:
  0.5-1.0mm², 1.5-2.5mm², 4-6mm²
  20-18AWG, 16-14AWG, 12-10AWG

2016-05HozanP-707€72

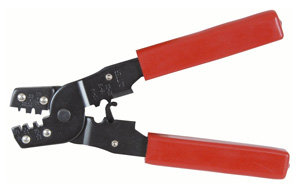

2016-0512voltplanetP00456 (YTH-202B)€14

I used 0.5mm² / 20AWG / 1.7mm diameter cable. Laser 1913 Crimping Pliers (0.5-1.0mm² / 20-18AWG) did not crimp insulated part well. I used P00456 (YTH-202B) non-insulated terminal crimping tool (0.3-0.5mm² / 20-22AWG) to crimp insulation part better.

22-26, 26-28
14-18, 20-22
22-26
10-14 16-18 20-22

Screwdriver

2020-01Wera7441 Adjustable Torque Screwdriver 7441 (1.2 → 3Nm)€60.0

Adjustable Kraftform torque screwdriver with Rapidaptor quick-release chuck
Suitable for bits with 1/4" hex head drive
Distinct signal when pre-set value is reached
Numerical torque value indicator

Torque Range: 1.2 → 3Nm
Accuracy: ±6 %
Drive Shape: Hex
Drive Size: 1/4 in

Drill & Driver

2021-01BoschGSR 12V-35 FC Professional (06019H3000)€300

Some holes must be drilled in plastic. I used wood drill bits for that.

L-BOXX 102 1 600 A01 2FZ
Drill chuck adapter GFA 12-B 1 600 A00 F5H
Bit holder adapter GFA 12-X 1 600 A00 F5J
Angle adapter GFA 12-W Professional 1 600 A00 F5K
Offset angle adapter GFA 12-E 1 600 A00 F5L
Quick charger GAL 12V-40 Professional 1 600 A01 9R3
2 x battery GBA 12V 3.0Ah 1 600 A00 X79

Torque (soft/hard/max.): 20/35/- Nm
Idle speed (1st gear / 2nd gear): 0 – 460 / 0 – 1.750 min-1
Battery type: Lithium-ion
Drill chuck clamping range, min./max.: 0.8 / 10 mm
Battery voltage: 12 V
Torque levels: 20+1

Accessory Set

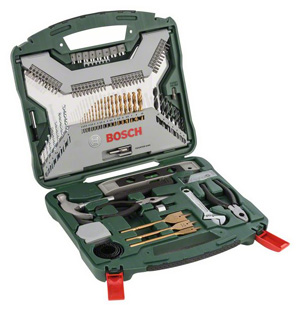

2015-01BoschX103Ti€50

18 HSS-TiN metal drill bits, diameter 1-10 mm
7 TC masonry drill bits, diameter 3-8 mm
7 wood drill bits, diameter 3-10 mm
3 spade bits, Titanium, diameter 16/22/32 mm
4 depth stops, diameter 3/5/8/10 mm
40 screwdriver bits:
L = 25 mm
PH 0/0/1/1/2/2/2/3/3/3
PZ 0/0/1/1/2/2/2/3/3/3
S 4/4/6/6/7/7
HEX 3/4/5/6
T 10/10/15/15/20/20/25/25/30/40
8 nutsetters, diameter 5/6/7/8/9/10/11/13 mm
4 HCS holesaws, diameter 32/38/45/54 mm
1 diameter gauge
1 countersink
1 tape measure
1 spirit level
1 Allen key
1 universal holder, magnetic
1 adapter for nutsetters
1 adapter for holesaws
1 hammer
1 adjustable spanner
1 pair of long nose pliers
1 pair of combination pliers

2018-12TackLife (China)PDH06A Step Drill Kit€20

For drilling 19mm hole in cargo box.

TackLife drill bits are not very precise. For example 10mm part diameters: 9.84mm, 9.50mm, 9.94mm

#1: 4 6 8 10 12mm
#2: 3 5 7 9 11 13 15 17 19mm
#3: 5 7 10 12 14 16 18 20 22mm
#4: 3 4 5 5.5 6 7 8 9 10 11 12 13mm
#5: 8 11 14 17 20 22 25 27 30 32 35mm
Automatic center punch

Butane Torch

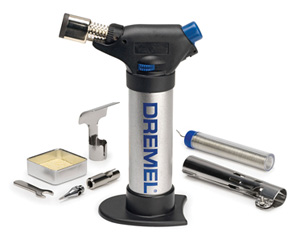

2016-05DremelVersaFlame Butane Torch€45

You can use gas lighter for heat shrink tubing, but it is much easier to work with Dremel VersaFlame.

VersaFlame™ Multi-function Butane Torch

Integrated ignition button for easy startup, no independent ignition tool required.
Variable temperature and flame control for versatile use in both torch and flame mode.
9-piece kit for wide array of versatile applications.
Detachable base for hands-free operation.
Premium quality for long life, durability.
Filling valve for quick recharge.
Two-year warranty

Accessories

VersaFlame™ Butane Torch
Blower
Deflector
Flame Diffuser
Soldering Tip
Solder, Sponge, Tin, and Wrench
Storage Case
Manual

2016-05NewportButane Gas€12

Newport zero butane is Extra Purified Near Zero Impurities Gas - Perfect to use with Turboflame Lighters,Refilling Butane Lighters, other Butane-Powered Products And other personal needs.

Digital Multimeter

Digital MultimetersSpreadsheetFluke

2016-01BrymenBM235 Multimeter€85

2016-01BrymenBM867S Multimeter€148

BM869s & BM867s is the next generation high performance industrial multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Ultimate choice of resolution, performance, safety and features. New series delivers the accuracy and advanced troubleshooting capabilities you need to solve problems fast. List of features is long: Large 500,000 counts Dual Display, dBm, 12kV Transient Portection, two channels temperature measurement, nS Conductance, High Impedance Voltage, High Accuracy 0.02% DCV, Current & Hz with unique functions:.

Beep-Jack™ – beeps against improper terminal plug in (decreases risk of damage).

VFD V & Hz – Variable Frequency Drives – measures fundamental voltage and frequency of most variable frequency drives.

CREST 1ms – to capture instanteous peaks.

REC – 50ms recording MAX, MIN, MAX-MIN & AVG.

X-Speed Capacitance – measures up to 25mF only in few seconds, 1kV protection.

4-20mA – Process control loop current reading.

T1 , T2 – two channel temperature measurement.

Label Printer

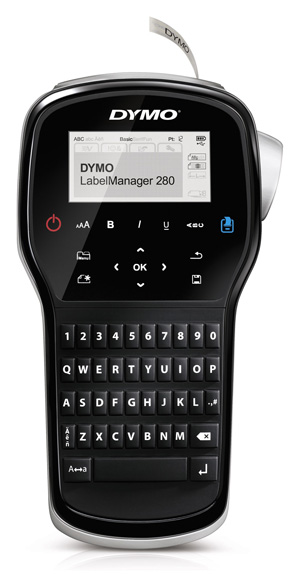

2016-11DymoLabelManager 280€60

For marking cables with labels. D1 Standard Labels 12mm (S0720610) settings:

Font Size: 16pt
Length: Fixed 1.5" (38mm)
Align: Right

With a large graphical display, fast-formatting keys and a long-lasting rechargeable battery, the LabelManager® 280 is your ticket to fast, uninterrupted labeling. The computer-style keyboard is perfect for typing text quickly, comfortably and easily. Plus, PC or Mac®*connectivity enables you to customize labels with fonts and graphics of your choosing from your computer. The LabelManager® 280 prints DYMO D1 labels in 6mm (1/4”), 9mm (3/8”), 12mm (1/2”) widths in a variety of colors – perfect for labeling your files, shelving, equipment and more.

2016-11DymoD1 Standard Labels 12mm (S0720610)€12

Created specifically for your LabelManager® and LabelWriterr® Duo label makers, DYMO D1 labels offer the performance and variety you need for most labeling jobs. They adhere to most clean, flat surfaces – including plastic, paper, metal, wood and glass – and feature easy-peel backing for trouble-free application. Versatile, durable and available in a wide variety of widths and colors, D1 labels take the hassle out of home and office organization.

Black on White
Black on Clear
Black on Yellow
Black on Blue
Black on Green
Black on Red
White on Clear
White on Black
Blue on White
Blue on Clear
Red on White
Red on Clear

Soldering

JBC (ES)Hakko (JP)Ersa (DE)Weller (US)PDF

2016-01WellerBP865CEU Battery Powered Soldering Iron€28

Dual Powered Battery Soldering Iron.
6 Watts on level I (380°C) indicated by green LED.
8 Watts on level II (480°C) indicated by red LED.
Heats up to working temperature in 30 seconds.
Protective storage cap turns off power when placed on tool.

2016-01WellerWE 1010 Soldering Station€155

2021-01JBCCD-2BQF Soldering Station€420

2016-01WellerWT 1013 Soldering Station€426

To solder wires to potentiometer and switch.

Channels: 1
Power: 95 W
Temperature range: °C 50 - 450 (°F 150 - 850)
Temperature accuracy: °C ±9 (°F ±17)
Temperature stability: (°F: ±4)
Display: Backlit LCD

2018-12WellerEL60/40-100€7

Electronic solder with resin-core, 100 g, Ø 1 mm
Composition: S-Sn 60 Pb 38 Cu 2, DIN EN 29454-1, 1.1.2B.
100 g spool

2018-12Kester44 Flux-Cored Wire€25

Kester 44 Rosin Flux is an activated rosin formula for use in flux-cored solder wire. 44 has virtually dominated the field of activated rosin core solders for well over four decades. An outstanding performance feature of this flux is the “instant-action” wetting behavior. The high mobility and fast-spreading action of this flux results in more reliable production line soldering. 44 is classified as ROM1 per J-STD-004.

Sn60Pb40 - 0.8mm - 3.3% Flux - melting range 183-190°C
Sn63Pb37 - 0.8mm - 3.3% Flux - melting point 183°C

2020-01QuadHands Magnetic WorkBench Helping Hands€45

• Powder coated 6" x 9" (23.86cm x 15.24cm), 4 pounds (1.8kg) steel base won't tip over even with heavy projects.
• 4 flexible magnetic based 16" (40.64cm) and 8" (20.32cm) arms can be positioned anywhere on the heavy steel base.
• Arms come with heavy duty stainless steel alligator clamps. Each clamp can be rotated 360 degrees then locked into place with the knurled thumb nut.
• Additional 8" (20.32cm), 12" (30.48cm), 16" (40.64cm) arms can be purchased as needed to suit any configuration.
• The entire system is supported on 4 rubber feet that will hold the WorkBench steady as you work.
• Includes removable silicone coverings for extra protection while working on delicate objects such as microchips and other electronics.

Protractor

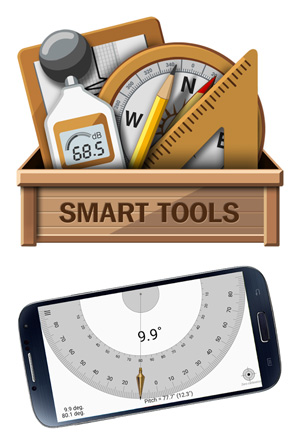

2019-05Android boy's LabSmart Tool App€0

To set 20° angle for holders and brake levers on handlebar.

Smart Tools® is the complete package of 6 individual apps. It has 6 sets below for a total of 15 tools. In a word, All-in-One.

Set 1. Length, Angle, Slope, Level, Thread : Smart Ruler Pro
Set 2. Distance, Height, Width, Area : Smart Measure Pro
Set 3. Compass, Metal detector, GPS : Smart Compass Pro
Set 4. Sound level meter, Vibrometer : Sound Meter Pro
Set 5. Flashlight, Magnifier, Mirror : Smart Light Pro
Set 6. Unit : Unit Converter

Jocys.com

PETG Filament
PETG Filament

I would not recommend to print parts from ABS (shrinkage is too big) or PLA (low heat resistance).

2018-05Prusa3DJet Black Prusament PETG 1.75€32

2020-08MCPPBasicFil PETG 1.75€21

2020-08AmazonAmazonBasics PETG 1.75€21

From identical design of spools, silica-gel sachets, temperature recommendations, printing results, similar prices on Amazon and that both are manufactured in Netherlands... AmazonBasics PETG filament can be rebranded BasicFil PETG by Mitsubishi Chemical Performance Polymers (MCPP) Netherlands B.V., one of the world's largest polymer based 3d filament manufacturers.

Brand AmazonBasics
MCPP BasicFil
Prusa3D
Prusament
3DPrintz Overture Filament PM Real
Filament
Region EU CZ UK US CZ NL
Price €22 €32 €29 €22 €22 €30
Color blackness 10 9 9 9 9 6
Glossiness uniformity 9 9 10 9 7 6
Stringing 10 10 10 10 8 6
Warping 10 10 10 10 10 8

From design of the spools, 3DPrintz PETG filament can be rebranded PETG K5 by NorthBridge3D (China) sub-brand Kexcelled (China). They claim, that they are "The largest 3D filament manufacturer in East China".

3DPrintz
Prusa3D / Filament-PM
Real-Filament

3DPrintz

2018-05SHLIsopropanol / Isopropyl Alcohol / IPA€15

For preparing-cleaning heated printer bed... Double-sided Textured PEI Powder-coated Spring Steel Sheet before printing with PETG filament.

For thin parts to stick correctly, you may need to adjust height of first layer perfectly and to reduce "Elephant foot compensation" from default value 0.2mm... to 0.1mm.

Modified settings: PrusaSlicer > Print Settings > 0.20 QUALITY MK3 > Advanced > Slicing...

Isopropanol 99.9% / Isopropyl Alcohol / IPA
Manufacturer Part Number: 1000-ISO-TRIGGER
Child Proof Cap
Natural Trigger spray cap for bottles with a 28mm neck (OFF, Spray, Stream)
1 Litre


2018-05PC JohnsonWindex Original Glass Cleaner€8

For preparing-cleaning heated printer bed... Spring Steel Sheet with Smooth Double-sided PEI before printing with PETG filament.

Water: Water
2-Hexoxyethanol:Cleaning Agent
Isopropanolamine: Cleaning Agent
Ammonium Hydroxide: Cleaning Agent
Lauryl Dimethyl Amine Oxide: Wetting Agent
Sodium Dodecylbenzene Sulfonate: Wetting Agent
Fragrance: Fragrance
Liquitint® Sky Blue Dye: Dye

2018-05KleenexUltra Soft Pocket Tissues€6

For preparing-cleaning heated printer bed.

3-ply thickness paper tissue sheets

Jocys.com

Printing Settings
Printing Settings for PETG Filament on TEXTURED PEI Powder-coated Spring Steel Sheet

2018-05Prusa3DPrusaSlicer

PrusaSlicer is available for Windows, Mac and Linux

For BIG parts to stick on TEXTURED PEI Powder-coated Spring Steel Sheet, I increased bed temperature for AmazonBasic • BasicFil PETG filaments from recommended 60-80°C to 85°C (First layer) and 90°C (Other layers). I printed BIG parts in my own Temperature Controlled Enclosure. Temperature inside enclosure was 35°C. E3D V6 HotEnd is rated to 40°C ambient operating temperature. As you approach that temperature, cooling efficiency is reduced, allowing more heat up past the heatbreak. This can cause low temperature filament to soften in the mechanism to cause feed problems.

Temperature

PrusaSlicer ► Filament Settings ► Generic PETG (modified) Filament

Temperature

Nozzle:

First layer: 240 °C
Other layers: 240 °C

Bed:

First layer: 85 °C
Other layers: 90 °C

Layers and Perimeters

PrusaSlicer ► Print Settings 0.20 QUALITY MK3 (modified) Layers and perimeters ►

Vertical shells

Perimeters: 6 (minimum)

Quality (slower slicing)

Ensure vertical shell thickness: disabled - I had problems with thin 45° hanging angles when it was enabled.

Advanced

Seam position: Rear - created line at the back of the parts, but front and side surfaces were perfectly smooth.

Infill

PrusaSlicer ► Print Settings ► 0.20 QUALITY MK3 (modified) Inflill ►

Infill

Fill density: 80%

Speed

PrusaSlicer ► Print Settings ► 0.20 QUALITY MK3 (modified) Speed ►

Speed for print moves

All speeds (except greyed out - locked fields): 25 mm/s or % - slower printing speeds (10-25-180-400), results in smoother and glossier surfaces without matte areas, reduces printing noise and vibrations - lesser probability for corners of big parts to unstick from heated bed, because of shrinking.

Modifiers

First layer speed: 10 mm/s or % - for better adhesion.

Acceleration control

All speeds (except greyed out - locked fields): 400 mm/s²

Auto speed (advanced)

Max print speed: 25 mm/s

Custom G-Code

PrusaSlicer ► Printer Settings ► Original Prusa i3 MK3S (modified) Custom G-code ►

Start G-code ►

G0 Z50 ; ADDED LINE - NOZZLE BLOB - Z up 50 mm to clean filament blob from nozzle before printing.
G4 S5 ; ADDED LINE - NOZZLE BLOB - Pause 5 seconds to clean the nozzle.
G0 Z-50 ; ADDED LINE - NOZZLE BLOB - Z down 50 mm to initial position.
G0 Z0.5 ; ADDED LINE - INTRO LINE - Z up 0.5 mm for less intro line adhesion to prevent steel sheet plate surface from wearing.
G0 Y-1 ; ADDED LINE - INTRO LINE - Y shift 2 mm intro line default start position to prevent steel sheet plate surface from wearing.

Jocys.com

STL Files
STL Files

For better quality and safety... I printed majority of parts separately.

To split group and to remove some parts:

1. Open “*.STL” file in PrusaSlicer Edition.
2. Click on [ Split to objects ] button.
3. Select parts one by one, which you don't want to print.
4. Press [ Del ] key on keyboard.

You can edit STL files with free and open source 3D creation suite Blender.

Import “*.STL” file:

  1. Blender 2.8 ► File ► Import ► Stl (.stl).

If imported STL object is not visible:

  1. Select imported object in “Scene Collection” list (top-right panel).
  2. In “Object Mode“ (top-left drop-down) ► Object ► Set Origin ► Geometry to Origin.

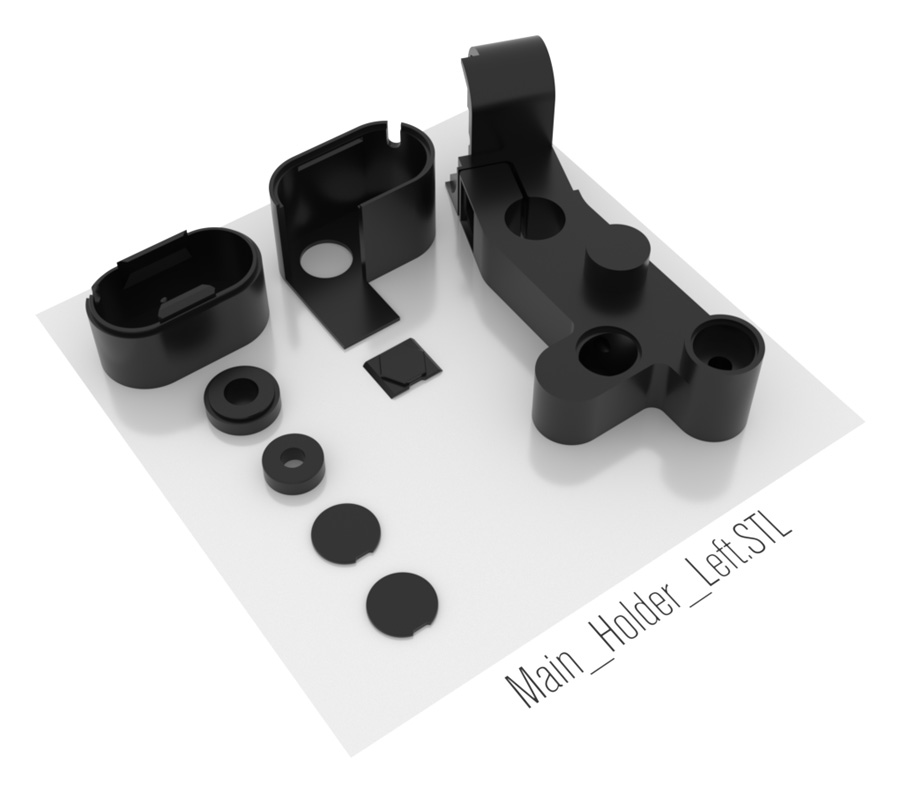

Main_Holder_Left.STL

For NC-17 254 Trekking Bicycle Handlebar 25.4 mm • 22.2 mm

1 x Main Holder Left
1 x Main Holder Left Cover Top
1 x Main Holder Left Cover Bottom - Seam Position: [ Rear ]
1 x Turn Signal Light Spacer
1 x Screw Cover (Square)
2 x Screw Cover (Circle - for Magazi Mirror and Bike It Mini Indicator)
1 x Screw Cover (Circle - for Touratech Mirror)

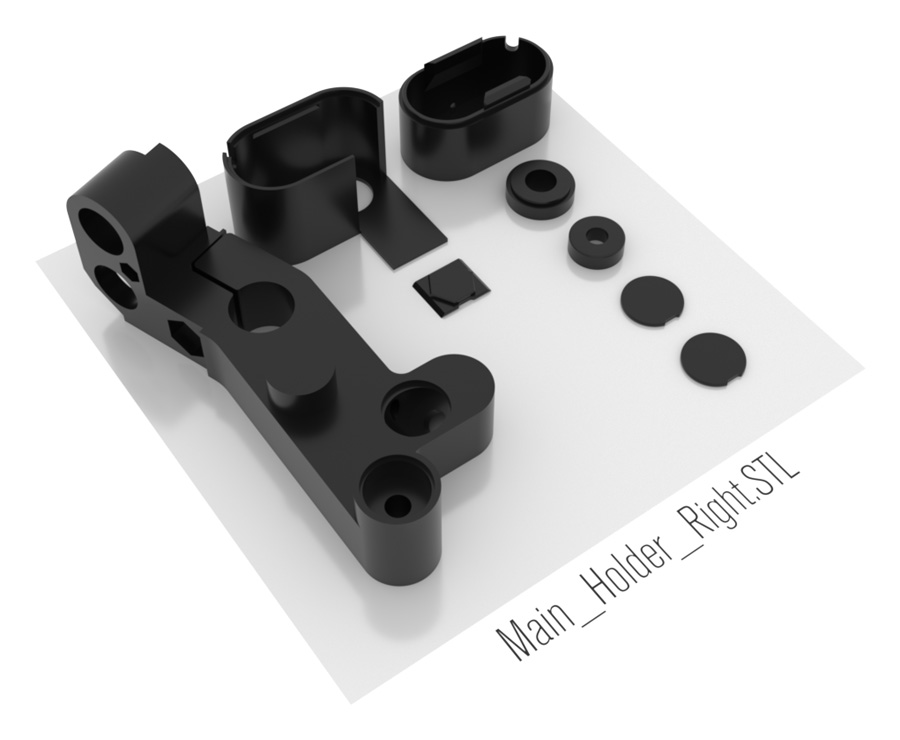

Main_Holder_Right.STL

For NC-17 254 Trekking Bicycle Handlebar 25.4 mm • 22.2 mm

1 x Main Holder Right
1 x Main Holder Right Cover Top
1 x Main Holder Right Cover Bottom - Seam Position: [ Rear ]
1 x Turn Signal Light Spacer
1 x Screw Cover (Square)
2 x Screw Cover (Circle - for Magazi Mirror and Bike It Mini Indicator)
1 x Screw Cover (Circle - for Touratech Mirror)

Control_Box.STL

1 x Control Box - Seam Position: [ Rear ]

Control_Box_Cover.STL

1 x Control Box Cover - Seam Position: [ Rear ]

Control_Box_Parts.STL

1 x Indicator Relay Holder
2 x Cable Holder
2 x Control Box 1 cm Spacer A
4 x Control Box 1 cm Spacer B
1 x 10mm to 7mm Spacer for Smaller (16mm) Potentiometer

For all knobs - Seam Position: [ Rear ]
2 x Knob for Smooth 6.4mm Shaft
1 x Extended Knob for Knurled 6mm Shaft
1 x Knob for Knurled 6mm Shaft (with square dent)
1 x Knob for Knurled 6.1mm Shaft (with circle dent)

Battery_Holder.STL

For DBPower B07CVF7L77 300A 800mAh Jump Starter

1 x Battery Holder - Seam Position: [ Rear ]
2 x Battery Holder Clip - Seam Position: [ Rear ]

Rear_Light_Holder_and_Cable_Box.STL

Rear light parts are for Shin Yo 255-700 Universal Stop and Taillight OVAL

1 x Rear Light Cable Box Cover - Seam Position: [ Rear ]
1 x Rear Light Cable Box - Seam Position: [ Rear ]
1 x Rear Light Cable Box Spacer
1 x Rear Light Spacer
1 x Rear Light Screw Nut Holder
1 x Rear Light Screw Nut Holder Cover

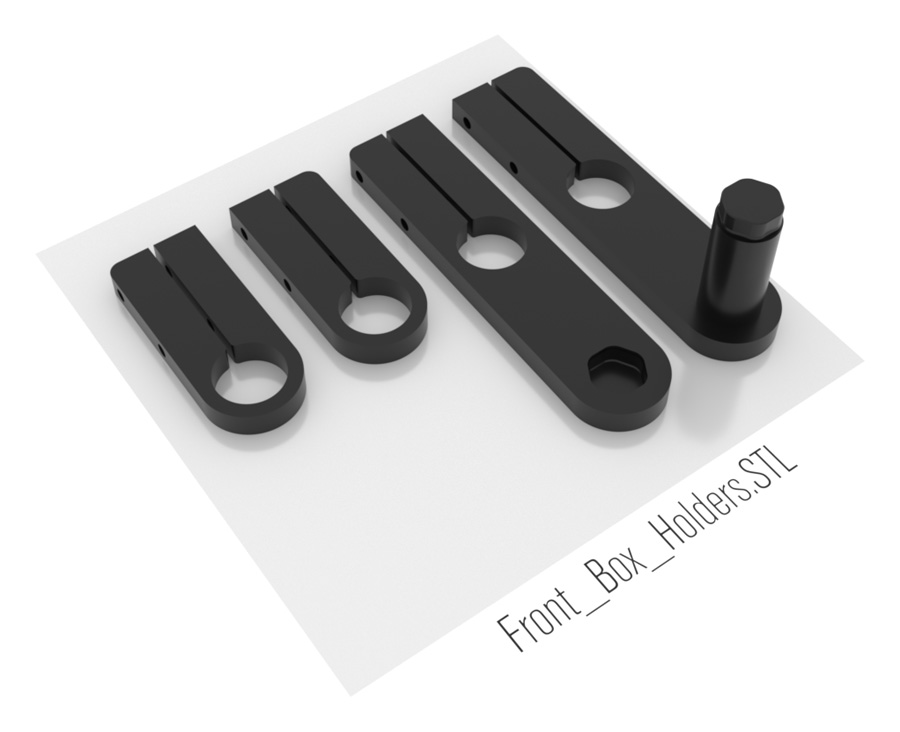

Front_Box_Holders.STL

For all parts - Seam Position: [ Rear ]
1 x Front Cable Box Holder A Left
1 x Front Cable Box Holder A Right

1 x Front Cable Box Holder B Left with 22.2mm Bar for Phone Holder
1 x Front Cable Box Holder B Right

Front_Handlebar_Box.STL

Can fit anti-theft alarms, like King Serry KS-SF22R

1 x Front Handlebar Box Cover - Seam Position: [ Rear ]
1 x Front Handlebar Box Plate
1 x Front Handlebar Box Insert

Rear_and_Front_Cable_Boxes.STL

1 x Front Cable Box Cover - Seam Position: [ Rear ]
1 x Front Cable Box Plate

Solar_Panel_Holders.STL

4 x Solar Panel Holder Top
4 x Solar Panel Holder Bottom Spacer - Seam position: [ Rear ]

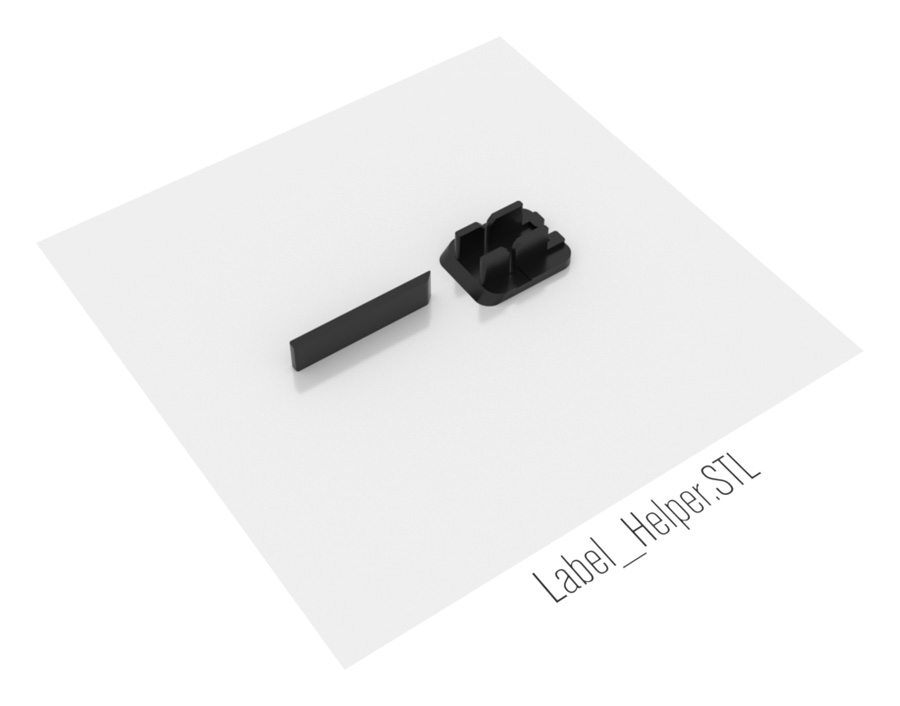

Label_Helper.STL

For marking cables with labels. D1 Standard Labels 12mm (S0720610) settings:

Font Size: 16pt
Length: Fixed 1.5" (38mm)
Align: Right

You can use needle or punch tool to slide label into helper, to prevent it from sticking to your fingers.

1 x Label Helper Part A
1 x Label Helper Part B

Jocys.com

Assembly
Assembly
Screws and Washers

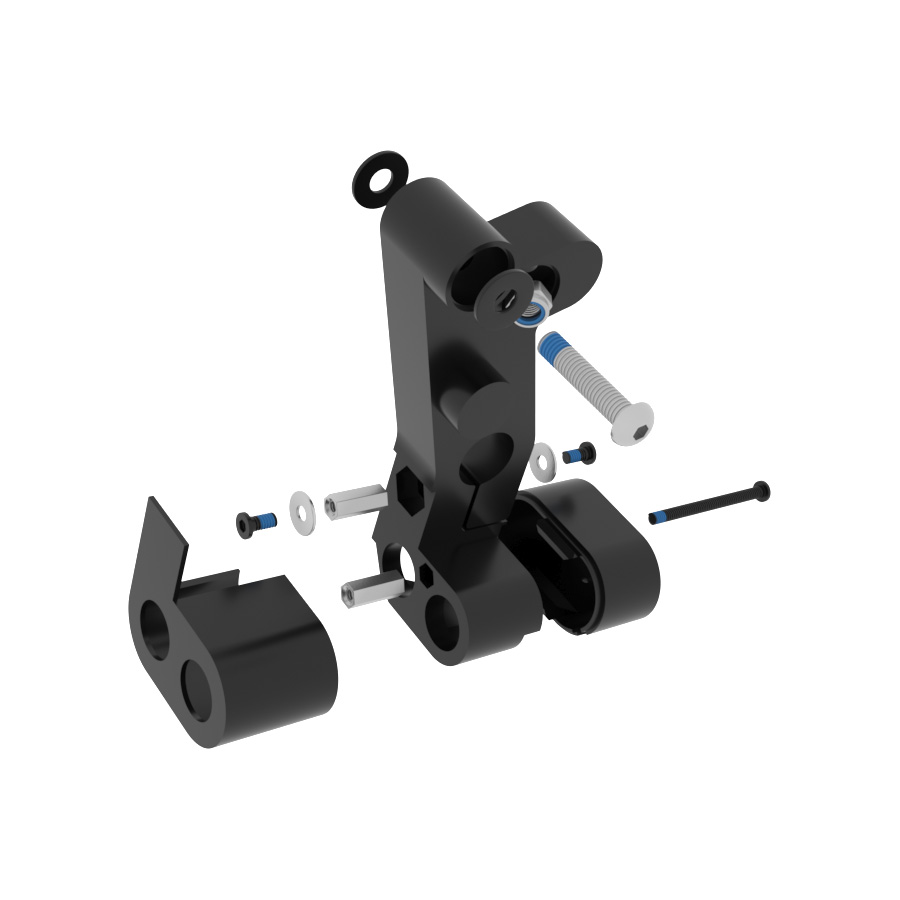

2 X INDICATOR-BUTTON-MIRROR HOLDER


Handlebar hole:

  • 2 x M5 10mm Low Profile Screw
  • 2 x M5 15mm Outer Diameter Washer
  • 1 x M5 20mm Hexagonal Stud Connector Nut

1. Screw together low profile screw, connector nut and washer (arrows).
2. Insert screwed set into holder's handlebar hole.

Cable box cover hole:

  • 1 x M5 60mm Low Profile Screw
  • 1 x M5 20mm Hexagonal Stud Connector Nut

3. Insert connector nut into holder's mirror hole.
4. Put cover on top of the holder
5. Put shrinking tube on pliers and screw buttons into holder. Be careful. You can scratch paint easily.

Mirror hole:

  • 1 x M8 40mm Magazi MG-1850 Screw
  • 2 x M8 20mm Outer Diameter Washer

Indicator hole:

  • 1 x M8 Nyloc Nut

FRONT CABLE BOX HOLDER

Front cable box holder:

  • 4 x M5 30mm Low Profile Screw
  • 4 x M5 Nyloc Nut

Front cable box holder with 22.2 mm x 42 mm bar:

  • 4 x M5 45mm Low Profile Screw
  • 4 x M5 Nyloc Nut

CONTROL BOX

Control box plate:

  • 4 x M5 30mm Low Profile Screw
  • 4 x M5 20mm Hexagonal Stud Connector Nut

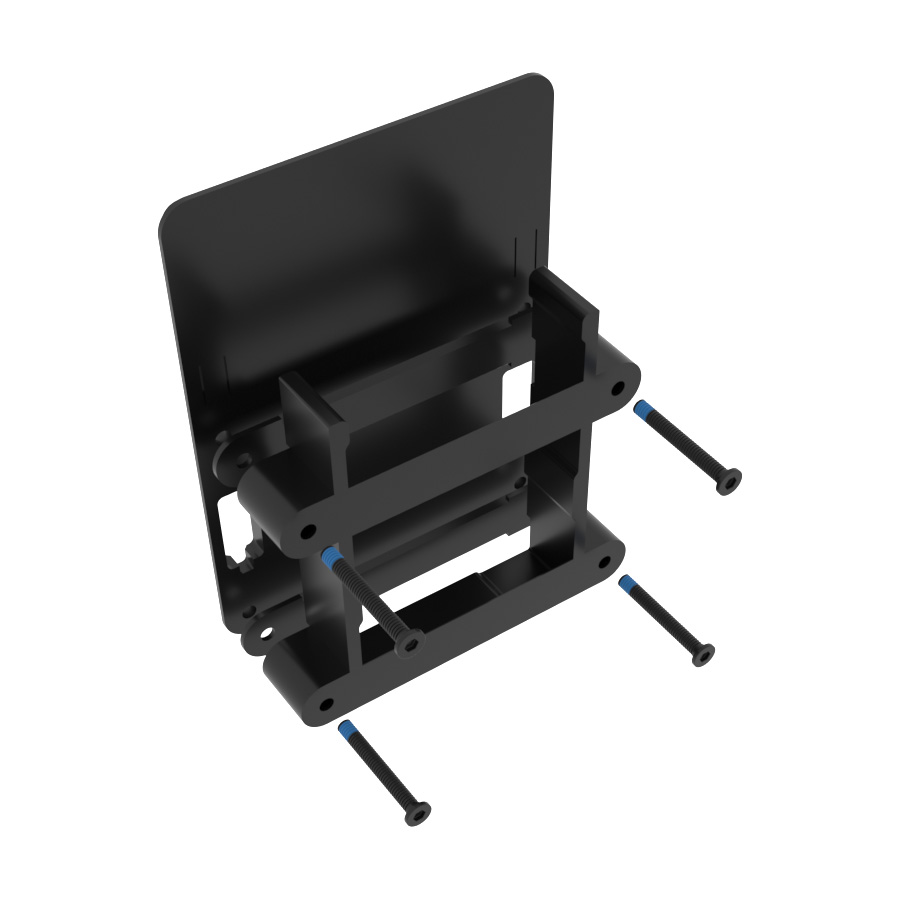

CONTROL BOX COVER WITH BATTERY HOLDER

Control box battery holder:

  • 4 x M5 40mm Low Profile Screw

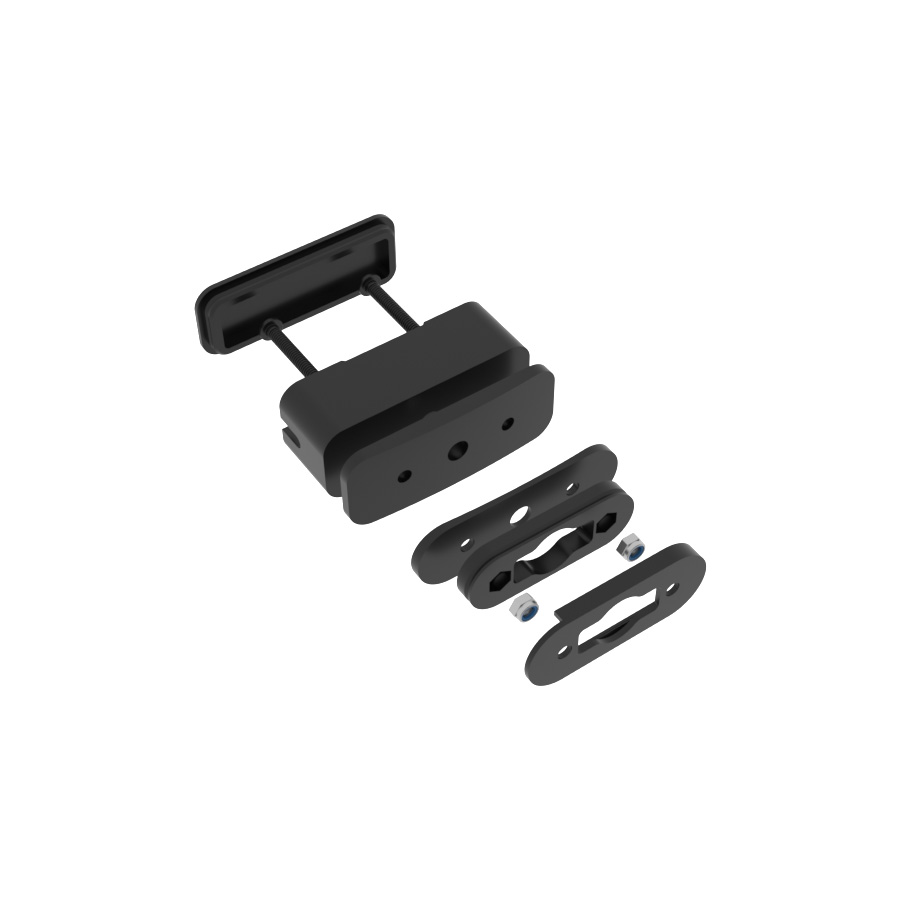

REAR CABLE BOX PLATE AND REAR LIGHT HOLDER

Rear light holder:

  • 2 x M5 30mm Low Profile Screw
  • 2 x M5 Nyloc Nut

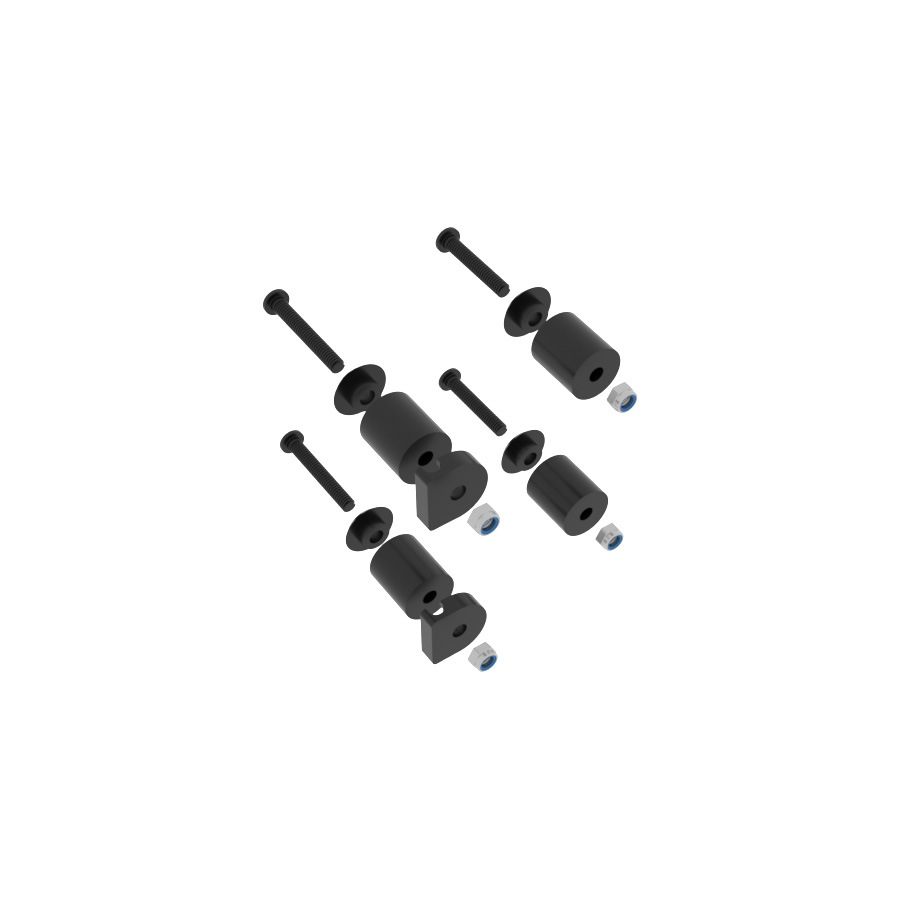

SOLAR PANEL HOLDERS

Solar panel holder with cable clips:

  • 2 x M5 35mm Low Profile Screw
  • 2 x M5 15mm Outer Diameter Washer
  • 2 x M5 Nyloc Nut

Solar panel holder:

  • 2 x M5 30mm Low Profile Screw
  • 4 x M5 15mm Outer Diameter Washer
  • 2 x M5 Nyloc Nut

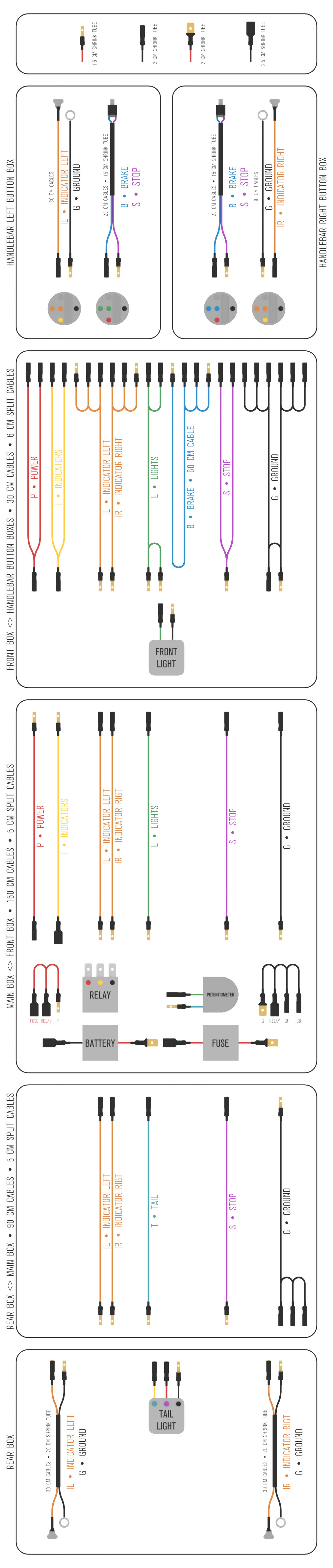

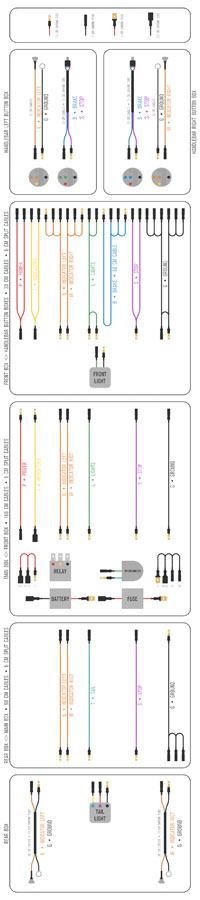

Cables

Cable lengths may differ for your bicycle.

Cable labeled with “Dymo LabelManager 280”:

Jocys.com

Amazon Script

Jocys.com
