Audio Switch and Volume Control Boxes
| Audio Source Switch and Volume Control Boxes 1.4 (2022-08-04) • 17MB |
|

|

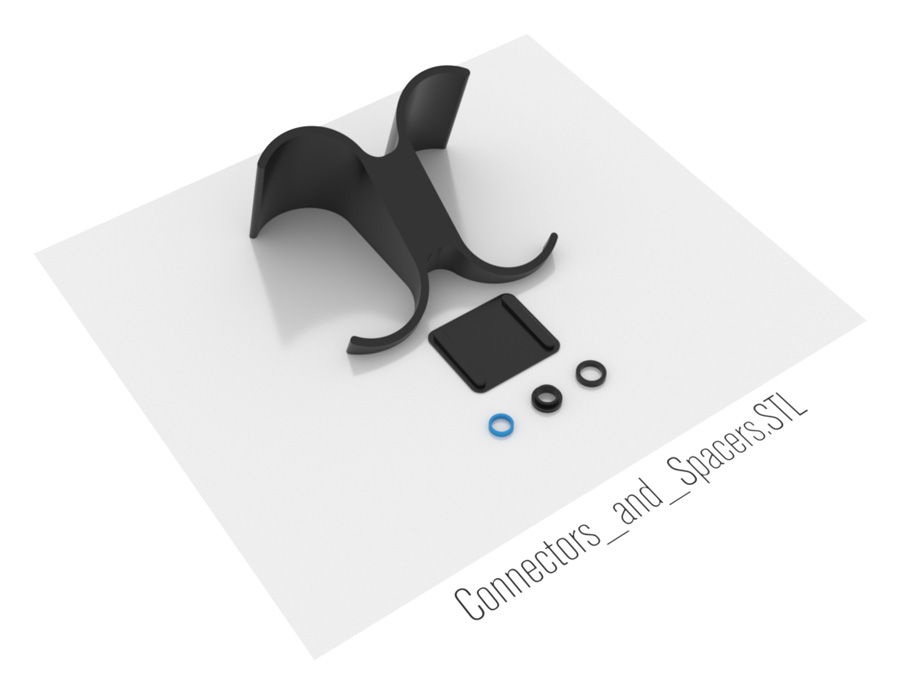

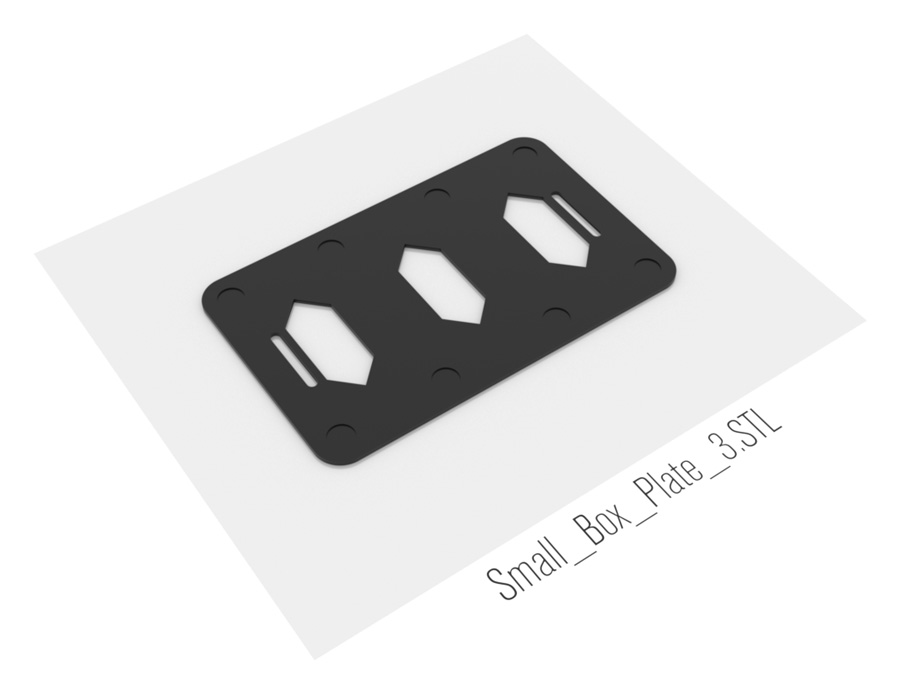

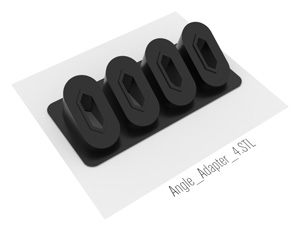

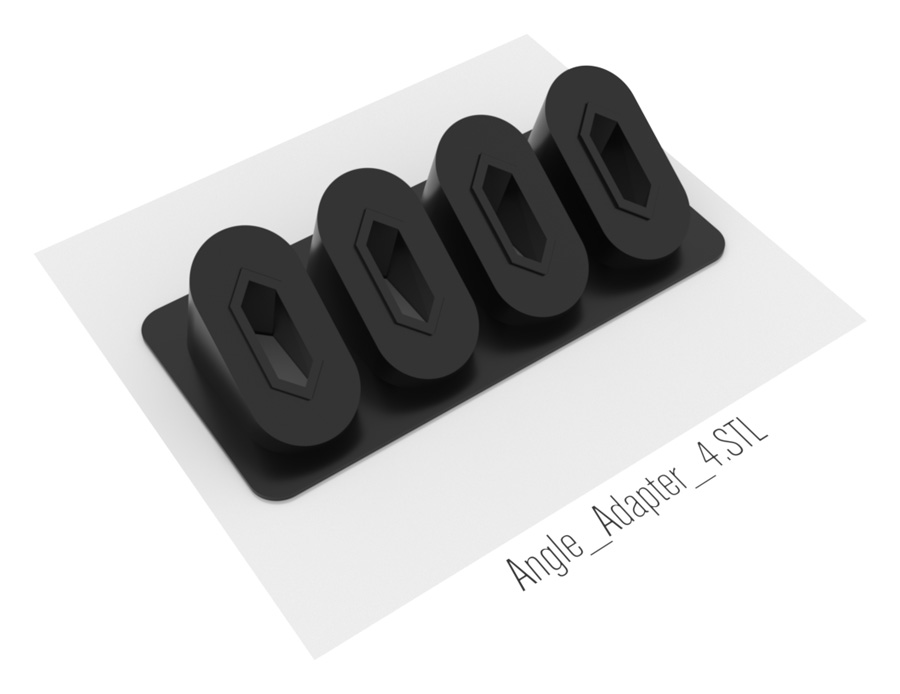

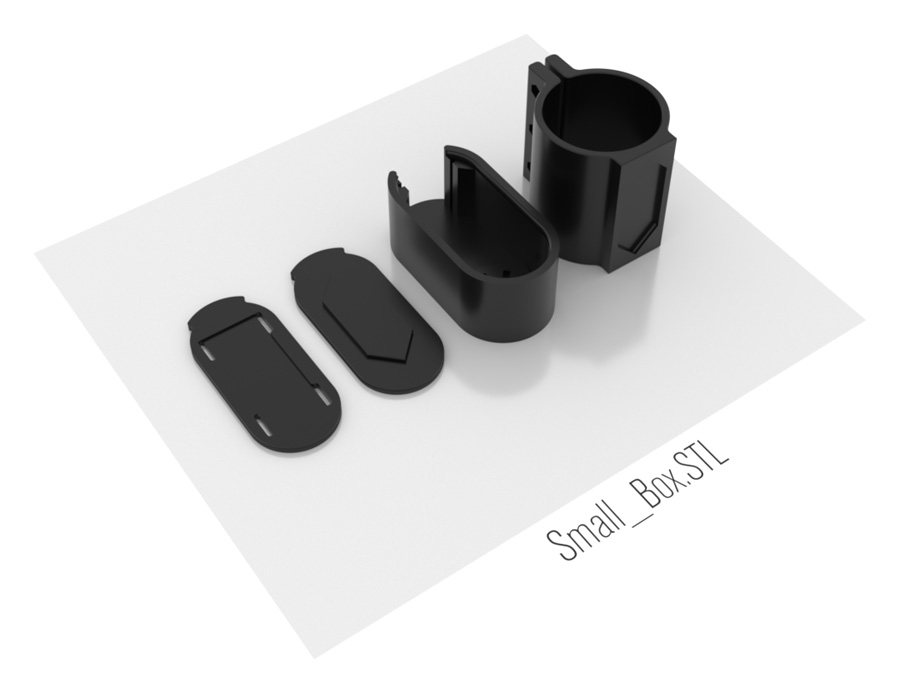

3D Printer STL files for audio source switch and volume control boxes. JocysCom-Switch.zip file size ~17MB.
Below you will find parts and tools, which will help you to print and assemble audio source switch and volume control boxes. If you noticed mistakes, have questions or suggestions, know better component (available in EU and US), please write or send link to info@jocys.com • Project on Thingiverse.com or Printables.com
Parts were printed from PETG with Prusa3D i3 MK3 Printer. If your printer is not precise enough, printed parts may not fit into each other and may not look good.
If you made your own updates or changes, related to this project, please send me a link. I will add this link to your work on this page.
Why I decided to make my own switch? I tested few audio switches. Ground wires of both audio sources were connected together in all of them. Why? I understand, that manufacturers can save few € by using cheaper switches with fewer poles, but consequences of that are unacceptable. Unnecessary ground merging creates audio noise and anomalies. You need to buy and use ground loop isolators to eliminate this noise, but ground loop isolators degrade quality of the audio slightly. I wanted audio to go through ground loop noise isolators ONLY, when both audio sources are merged (when you want to hear audio from both computers at the same time). To avoid audio merging, while switching sources, I used non-shorting switches. Also, I wanted to switch headphones and stereo microphone with ability to switch off (disconnect) microphone completely. With stereo microphone you can have better environment noise elimination options in software. I didn’t want to use powered audio mixers or interfaces, which needs power and processes (distorts) signal in any way.

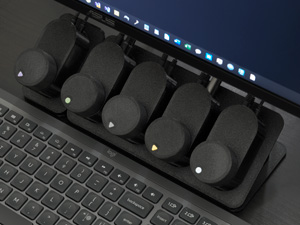

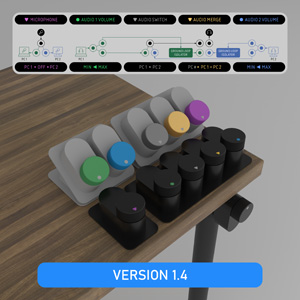

Features:
1. Microphone switch: PC1 • OFF • PC2.
2. PC1 audio volume control.
3. PC2 audio volume control.
4. Audio source switch: PC1 • PC2.
5. Audio source merge: PC# (OFF) • PC1 + PC2 (ON) - audio signal grounds of PC1 and PC2 are merged and audio goes through ground loop noise isolators ONLY, when audio signals are merged. This allows to avoid audio quality degradation, when unnecessary and you don't need to listen both computers at the same time.
|
 |
Creative Commons License
BY • Attribution - Credit must be given to the creator
SA • ShareAlike - Adaptations must be shared under the same terms |
| This license allows reusers to distribute, remix, adapt, and build upon the material in any medium or format, so long as attribution is given to the creator. The license allows for commercial use. If you remix, adapt, or build upon the material, you must license the modified material under identical terms. |
Jocys.com
Comments • 0
|
|
|
Updates
Updates

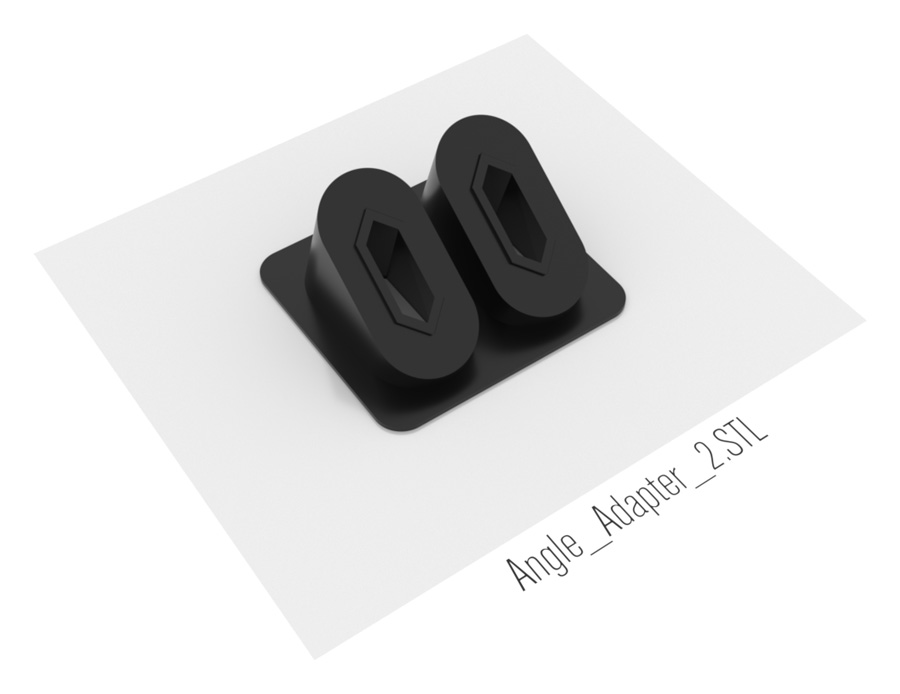

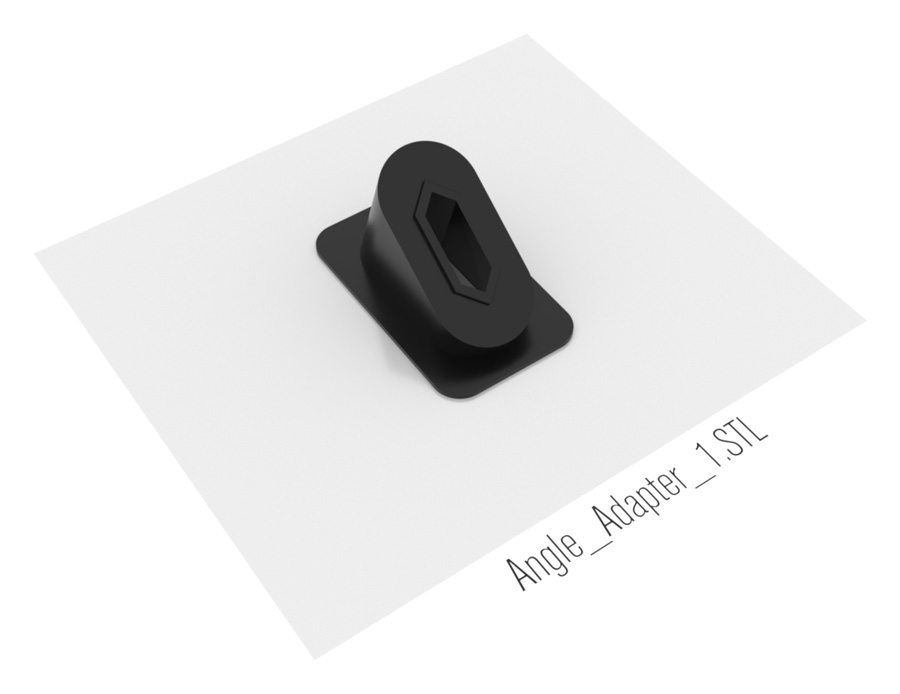

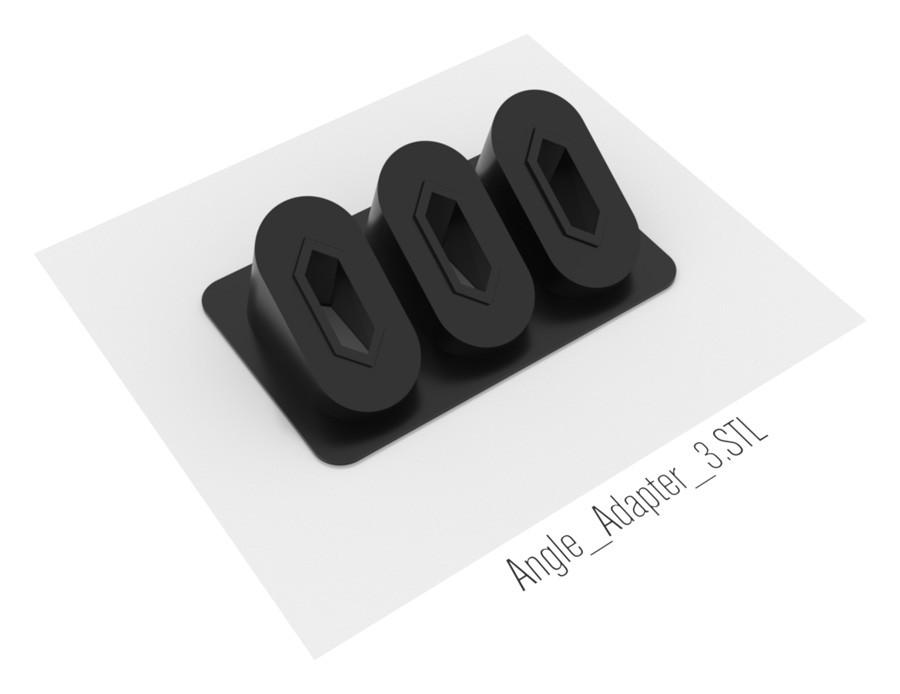

1.4 (2022-08-04) • 35° angle connector added.

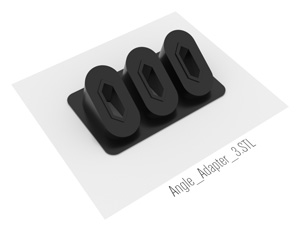

1.3 (2022-08-02) • 35° angle adapters added.

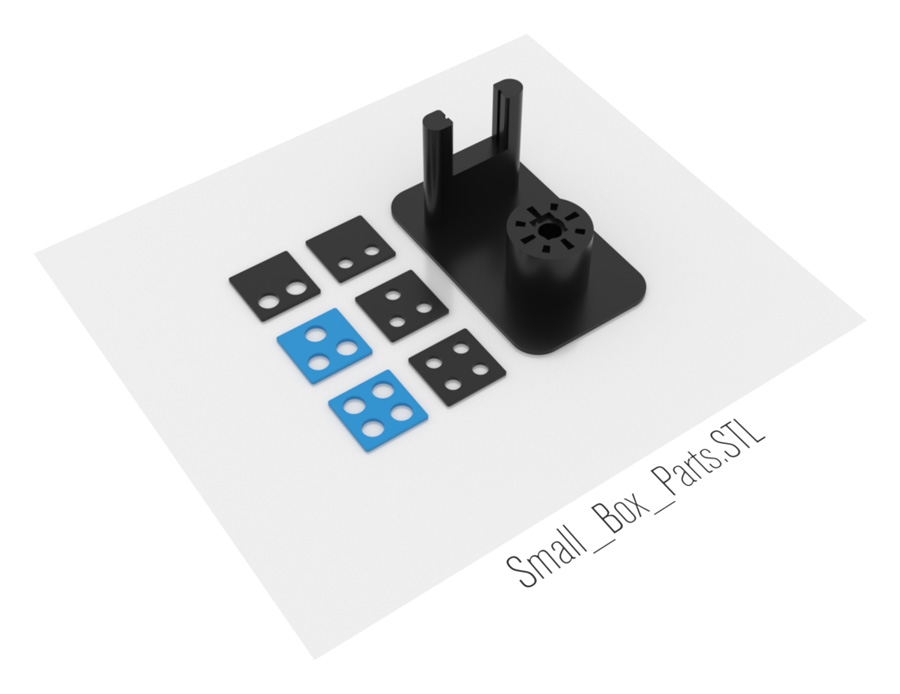

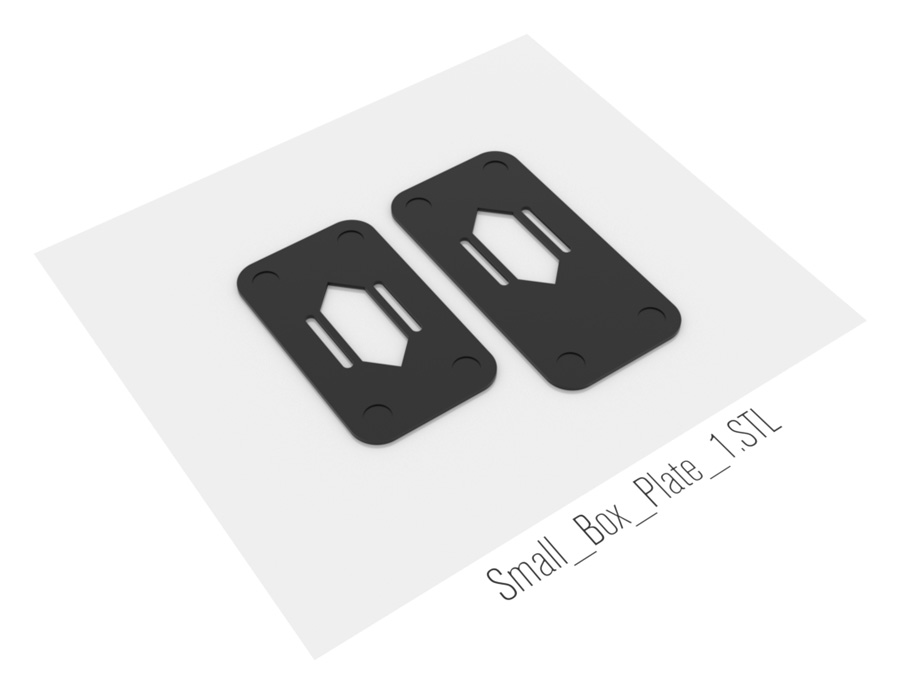

1.2 (2022-07-31) • Large and medium boxes removed. Small box and knobs updated.

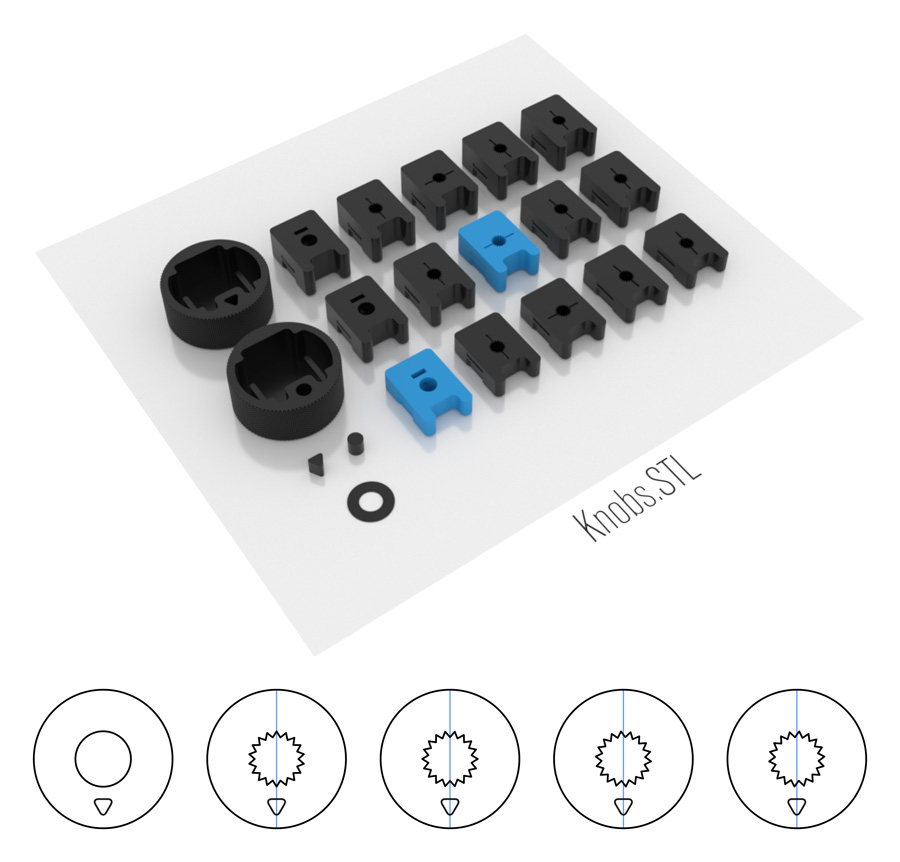

1.1 (2020-06-09) • Smooth shaft button added, knurled removed. Knobs redesigned to hide screw hole & to reduce ZIP from 67 to 11 MB.
1.0 (2020-06-06) • Released.
0.1 (2020-04-25) • ...
Jocys.com
|
|
|
Parts
Parts without Tools and Delivery
Rotary Switch for Audio Source Switching
 |
Taiwan Alpha • CTS • Bourns

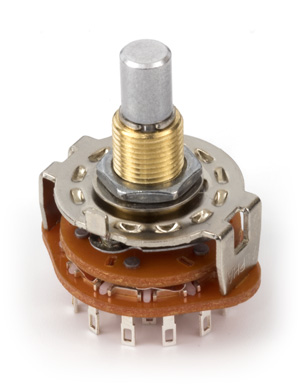

2020-05Taiwan Alpha • SR2511F-0602-19R0B-E9-N-W-159 • Mouser (EU)€5
2 x Rotary switch with 6 poles and 2 positions for "Audio Source Switch" and "Audio Merge Switch" boxes.
I would not recommend to buy cheap Chinese rotary switches. They are, usually, made from softer metals and after several dozen switches lose switching smoothness.
Series: SR2511F
Product Category: Rotary Switches
Number of Positions: 2 Position
Number of Decks: 1 Deck
Number of Poles per Deck: 6 Pole
Current Rating: 300 mA
Voltage Rating AC: 125 VAC
Index Angle: 0 deg
Contact Style: Non-Shorting (Non-Shorting / Break-Before-Make)
Termination Style: Solder Lug
Thread Size: M9xP0.75 (9mm)
|
 |

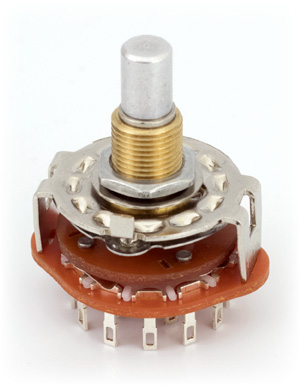

2020-05Taiwan Alpha • SR2511F-0403-19R0B-E9-N-W-159 • Mouser (EU)€5
1 x Rotary switch with 4 poles and 3 positions for "Microphone Switch" box.
I would not recommend to buy cheap Chinese rotary switches. They are, usually, made from softer metals and after several dozen switches lose switching smoothness.
Series: SR2511F
Product Category: Rotary Switches
Number of Positions: 3 Position
Number of Decks: 1 Deck
Number of Poles per Deck: 4 Pole
Current Rating: 300 mA
Voltage Rating AC: 125 VAC
Index Angle: 0 deg
Contact Style: Non-Shorting (Non-Shorting / Break-Before-Make)
Termination Style: Solder Lug
Thread Size: M9xP0.75 (9mm)
|
Rotary Potentiometer for Volume Control
 |

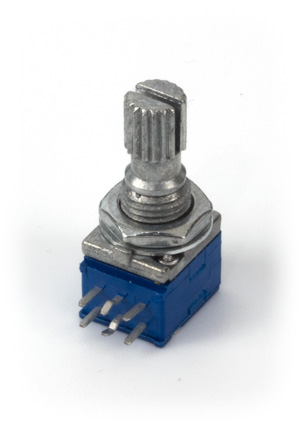

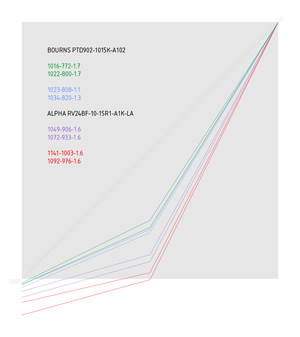

2020-05Bourns • PTD902-1015K-A102 • Mouser (EU) • Digi-Key (US)€2
Sennheiser uses 500Ω potentiometer in HZR 62 volume control for HD 62 TV 32Ω headphones.
Creative uses 1000Ω (1KΩ) potentiometer in Volume Control Module for Sound Blaster Zx.
10000Ω (10KΩ) potentiometers are too strong for Sennheiser HD 598 50Ω headphones.
2 x Bourns rotary potentiometer for volume control box.
Series: ProAudio PTD90 (9mm)
Resistance: 1 kOhms
Taper: Audio
Number of Gangs: 2 Gang
Number of Turns: 1 Turn
Tolerance: 10 %
Element Type: Carbon
Thread Size: M7xP0.75 (7mm)
Shaft Type: Knurled / Serrated
Shaft Diameter: 6 mm
Shaft Length: 15 mm
Termination Style: Through Hole
Mounting Style: Panel Mount
Life: 15000 Cycles
Power Rating: 25 mW
Voltage Rating: 20 VDC, 150 VAC
|
3.5mm 3 Pole Jack Socket
 |

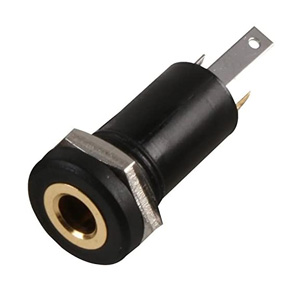

2020-05EST Marushin • MJ-073H ( CPC Farnell • UK Farnell • US Newark )€1.36
16 x 3.5mm 3-Pole Panel Mount Jack Socket
Manufacturer Part No: MJ-073H
No. of Contacts: 3 Contacts
Gender: Socket
Pin Diameter: 3.5mm
Connector Mounting: Chassis Mount
Contact Plating: Gold over Nickel Plated Contacts
Connector Body Material: Plastic Body
|
Diagrams
 |

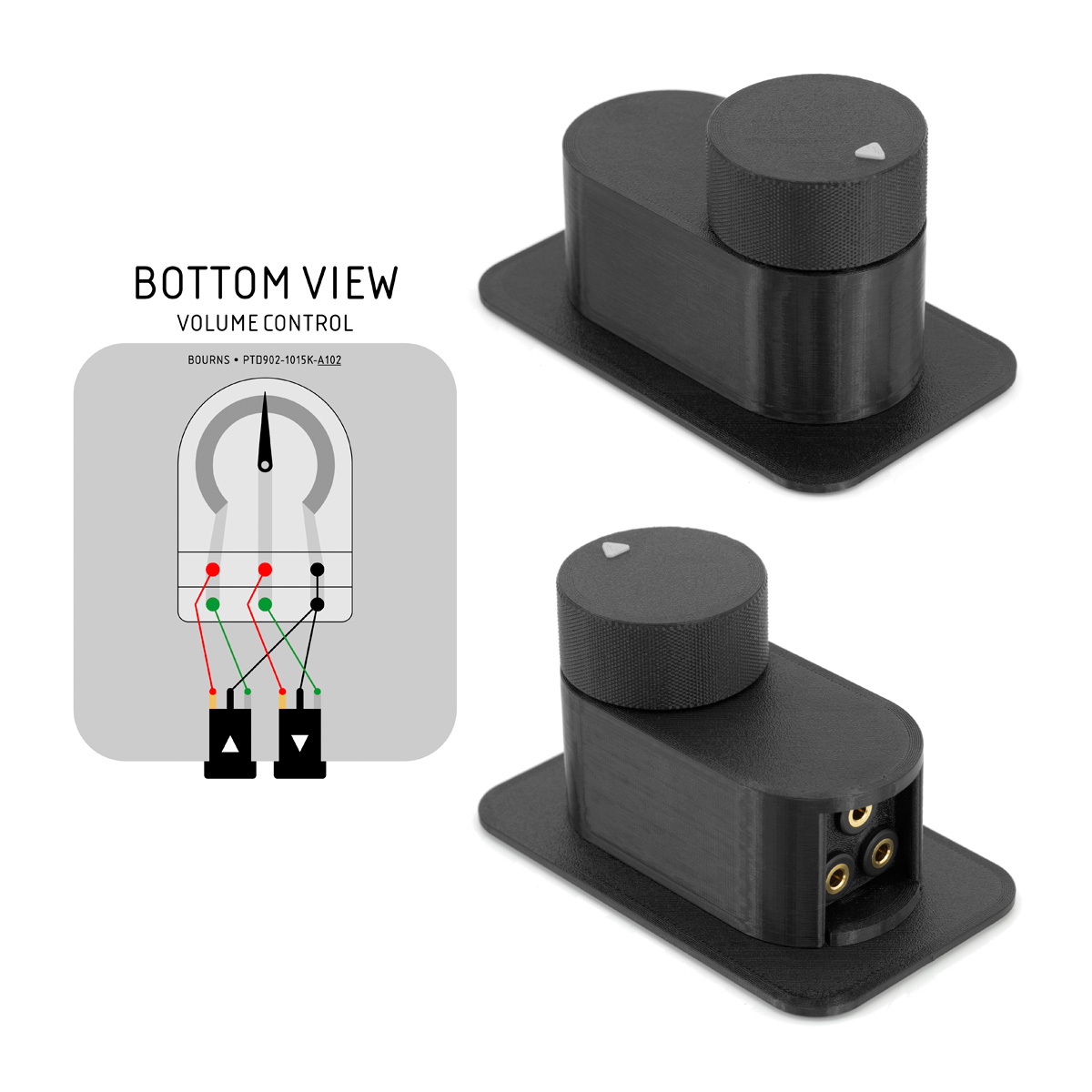

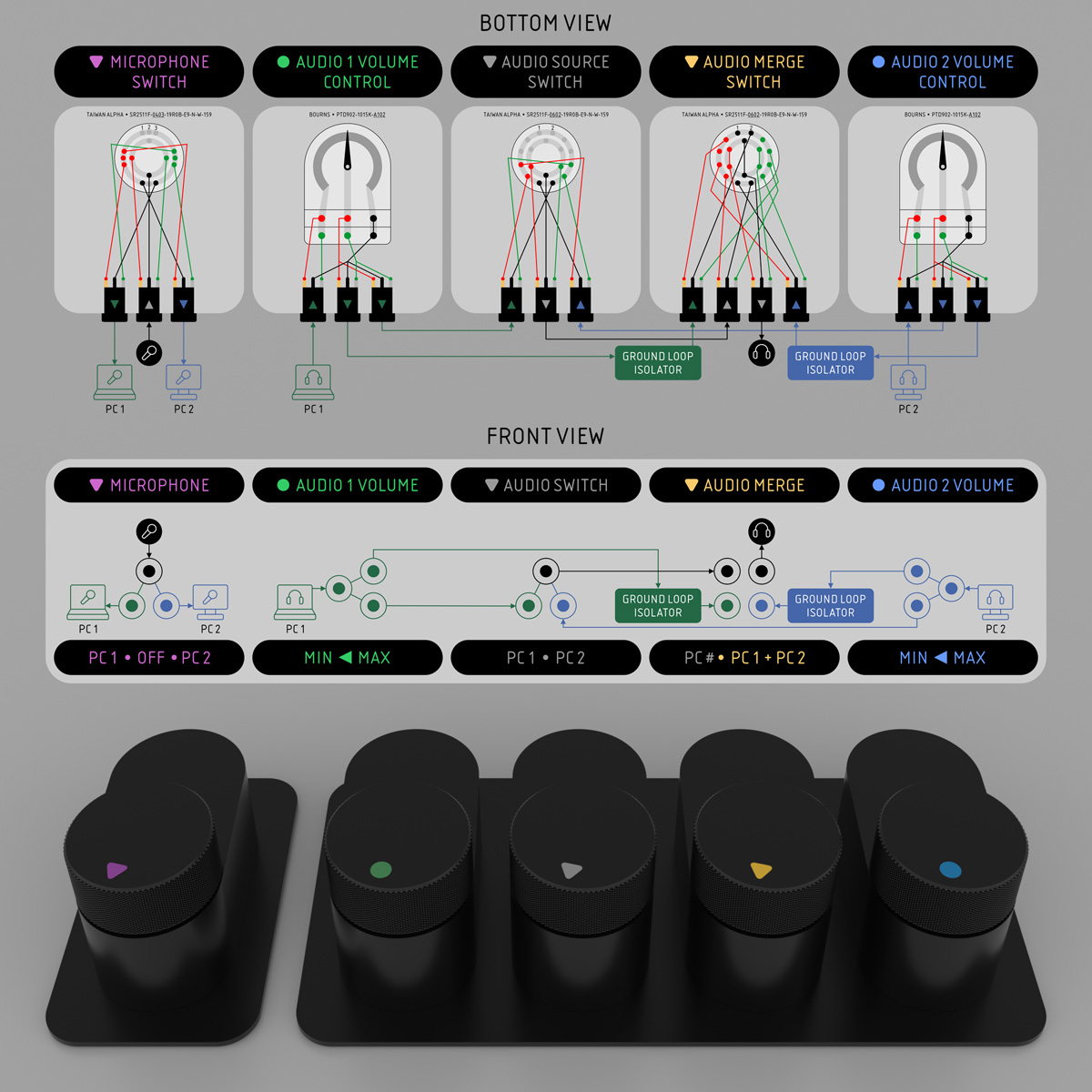

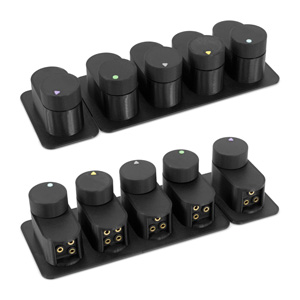

2020-055 Small Switch and Volume Control Boxes Diagram
1 x Taiwan Alpha • SR2511F Rotary Switch 4 Poles 3 Positions
2 x Taiwan Alpha • SR2511F Rotary Switch 6 Poles 2 Positions
2 x Bourns PTD902-1015K-A102 Potentiometer
16 x x EST Marushin • MJ-073H 3.5mm 3 Pole Jack Socket
2 x Neoteck • Ground Loop Noise Isolator

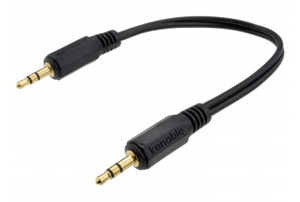

5 x Kenable • 001454 3.5mm Jack to Jack 15cm Cable
|
 |
2020-05Volume Control Box Only Diagram
Diagram shows 1 IN and 1 OUT socket, but volume control box in photo was assembled with 1 IN and 2 OUT (split) sockets.
1 x Bourns • PTD90 Rotary Potentiometer
2 x EST Marushin • MJ-073H 3.5mm 3 Pole Jack Socket
|
Audio Cables
 |
2020-05Kenable • 007534 3.5mm Jack to Socket 30cm Cable€1

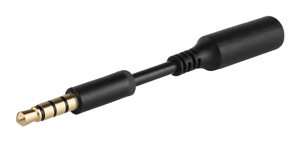

2020-05Amazon • 3.5mm Audio Jack Extender 3 inch€3
1 x If you will use "Volume Control" box attached to a leg table, I would recommend to use short 3.5mm Audio Jack Extender for some time. If you will forget, that you are wearing headphones, and will move from the table... if "Volume Control" box will not disconnection from its holder, extender will bend and headphones will disconnect first.
|
Ground Loop Isolator
 |

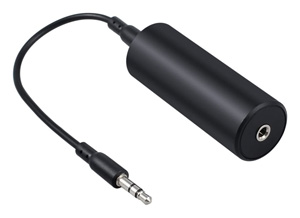

2020-05Neoteck • Ground Loop Noise Isolator€8
If you will use "Audio Source Merge" box (to hear both computers at the same time), grounds of booth sources will be connected together. This can introduce background audio noise and anomalies. To avoid problems, you need to add Ground Loop Noise Isolator between "Volume Control" and "Audio Source Merge" boxes for BOTH computers.
2 x Neoteck Ground Loop Isolator
Eliminates Hiss, hum, and other background interference, caused by ground loop noise.
For any audio devices that has 3.5mm audio jacks, like car audio system, home stereo, PC, laptop, speaker.
Compact size makes it easy to carry around.
Easy installation, no extra setup. All you need to do is to plug it in.
Contents: Vinteam ground loop isolator, 3.5mm audio cable, user manual, 18-Month product replacement warranty.
|
 |

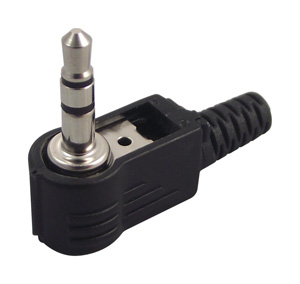

2020-05CPC Farnell • 3.5mm 3 Pole Jack Plug PSG03879€1.4
Manufacturer Part No: PSG03879
No. of Contacts: 3 Contacts
Gender: Plug
Pin Diameter: 3.5mm
Connector Mounting: Cable Mount
Contact Plating: Gold Plated Contacts
Connector Body Material: Metal Body
|
 |
2020-05Amazon • 3.5mm Male to Male 10cm 90 Degree Angle Cable€6
For connecting Ground Loop Noise Isolator inside Audio Source Switch Box:
2 x 3.5mm Male to Male 10cm 90 Degree Angle Cable
3.5mm male to male stereo jack plug audio cable for headphone / microphone / speaker stereo jack connection.
Dual 90 degree right angled jack plug male, unique slim connector design fits most iPod and iPhone 3.5mm stereo jacks without having to remove a protective casing.
Gold-plated, molded connectors with strain relief ensure a solid high quality connection between the connected devices.
90° Right angle connectors allows you to easily connect to tight spaces and hard to reach areas where a normal straight connector cannot.
Connections: 2 x 90 Degree 3.5mm Audio Stereo Jack Plug; No. of poles: 3; Cable Length: 10cm
|
Cables
 |

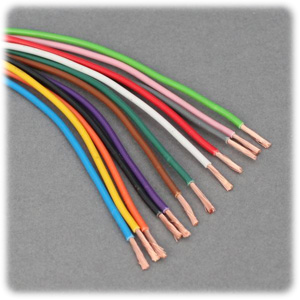

2020-0512voltplanet • Single 0.5mm² 11A€0.52

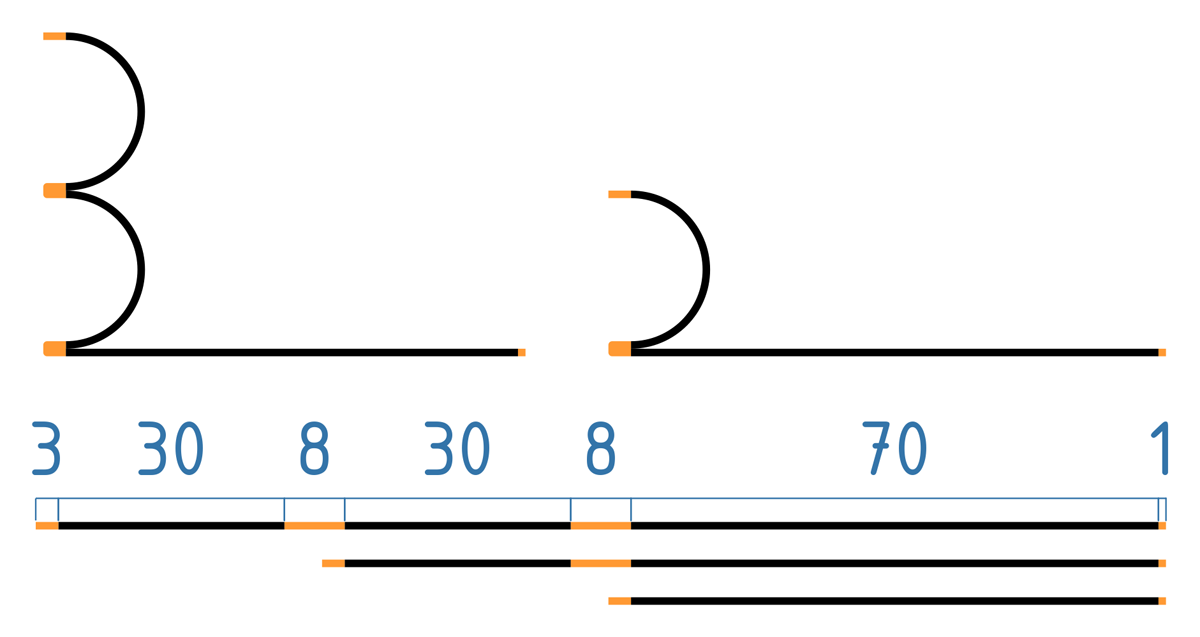

I cut majority of wires into 7cm length pieces. Then stripped insulation from the ends (3mm for 3.5mm audio jack and potentiometer pins, 1mm for switch pins). I created few longer wires to connect 2 or 3 pins together at one of the ends.
You can buy 5m of each colour (15m) for about €8.
1 x 50m Reel of Single 0.5mm² 11A - Black (ground)
1 x 50m Reel of Single 0.5mm² 11A - Red (right)
1 x 50m Reel of Single 0.5mm² 11A - White (left)
Manufactured to: ISO 6722:2006 (Class B)
Voltage rating: suitable for 12V & 24V systems (60V max.)
Nominal current rating: 11A
Maximum loading: 132W@12V, 264W@24V
No./size of conductors: 16/0.20mm
Conductor cross section: 0.5mm2
Maximum overall cable diameter: 1.7mm
Resistance per m at 20oC: 0.0371 Ω
Conductor material: Plain copper
Insulation material: PVC (hard grade)
Working temperature range: -40oC to +105oC (with brief excursions up to +120oC)
|
Bumper Stops
 |

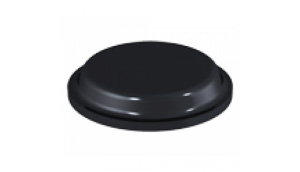

2020-05 BumperStops • Affixit • Cylindrical Bumper Stops PD.2120BSHEET€13
14 x anti slip bumper stop.
PD.2120 Cylindrical Bumper stops - 10.1mm x 1.8mm
288 Bumper Stops per Sheet (Priced per Sheet)
Material: Polyurethane
Adhesive: Black Bumper stops have a Rubber Adhesive.
Service Temperature for Black Bumper stops: -20 °C to 70°C
Anti Slip
Anti Scratch
Anti Vibrate
Absorbs Shock
Dampens Sound
|
Screws and Nuts for Switch Knobs
 |

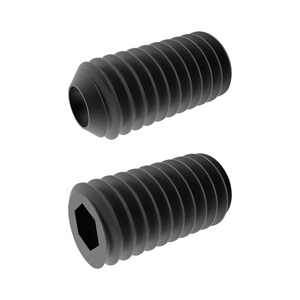

2020-05Accu • M3 8mm Cup Point Grub Screw (DIN 916)€0.5
3 x M3 8mm Cup Point Grub Screw for knobs.
Cup Diameter: 1.15mm-1.4mm
Finish: Chemical Matte Black
Length: 8mm Manufacturing Standard: DIN 916
Material: A4 Stainless Steel (Black)
Min Socket Head Depth: 1.2mm
Pitch: 0.5mm
1.5mm (1.52mm-1.58mm) Hexagon Socked
Thread Size: M3 (3mm)
|
 |

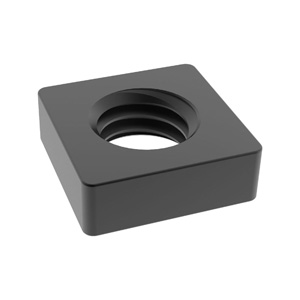

2020-05Accu • M3 Square Nut (DIN 562)€0.5
3 x M3 Square Nuts for knobs.
Finish: Chemical Matte Black
Manufacturing Standard: DIN 562
Material: A4 Stainless Steel (Black)
Pitch: 0.5mm
Thickness: 1.8mm
Thread Size: M3 (3mm)
Width: 5.5mm
|
Screws and Nuts for IKEA OLOV leg holder
 |

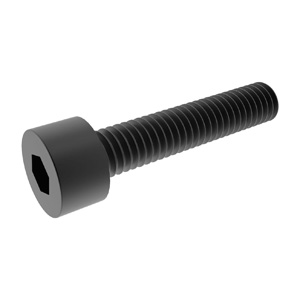

2020-05Accu • M3 x Cap Head Screw (DIN 912)€0.5
3 x M3 12mm Cap Head Screws for IKEA OLOV adustable leg holder.
M3 (3mm) Thread Size (T)
12mm Length (L)
3mm Head Length (H)
1.3mm Hexagon Depth (P)
2.5mm Hexagon Socket A/F (J)
DIN 912 Manufacturing Standard
+/- 0.13mm General Tolerances
Yes Fully Threaded
12.9 Hardened Steel Material
0.5mm Screw Thread Pitch
5.5mm Head Diameter (D)
10mm or 18mm Thread Length (Max)
|
 |

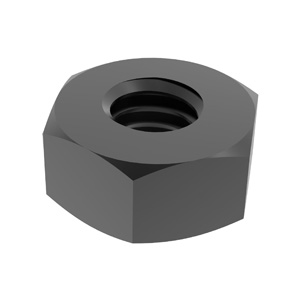

2020-05Accu • M3 Hexagon Nut (DIN 934)€0.5
3 x M3 Hexagon Nuts for IKEA OLOV adustable leg holder.
DIN 934 Manufacturing Standard
5.32mm - 5.50mm Nut Width A/F (F)
0.13mm General Tolerances
A4 Stainless Steel - Black Material
A4 Stainless Steel Material Specification
Chemical Matte Black Finish
6.01mm Nut Width A/P (C)
0.5mm Thread Pitch
M3 (3mm) Thread Size
2.15mm - 2.40mm Nut Thickness (T)
|
Knobs (Optional)
 |
2020-05Kilo International • OEJA-90-4-5 Knob€6
These knobs look good for volume control.
Make sure, shaft diameters on knob and potentiometer are the same (6mm or 6.35mm).
Model: OEJ
Indicator: (L)line, (A)arrow, (NI)no ind.
Diameter: (50)0.500", (63)0.625", (75)0.750", (90)0.920"
Finish: (1)clear gloss, (2)black gloss, (3)clear matte, (4)black matte
Shaft Size: (5)0.250"(6.35mm), (6)0.125", (7)0.2375"(6mm)
|
Velcro (Optional)
 |

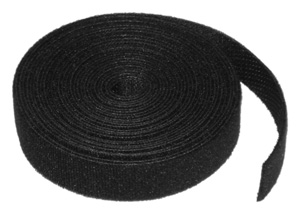

2015-01Velcro • One-Wrap Reusable Ties 10mm x 5m€6
For tying Volume Box B to something with "Volume Control Box B Bottom" part for Velcro.
10mm x 5m - Black
|
 |
2015-01Velcro • Heavy Duty Stick On Tape 50mm x 1m€8
For sticking Volume Box B to something with "Volume Control Box B Bottom" part for Velcro.
50mm x 1m - Black
VELCRO® Brand Stick On fasteners are ideal for smooth surfaces and can be used indoors or outside. They are available in squares, coins, strips, and tapes and come in a range of colors.
Application Instructions:
1. Clean and dry surface before application
2. Peel tape from fastener and press firmly into place
3. Adhesive reaches maximum strength after 24 hours
|
Jocys.com
Comments • 0
|
|
|
Tools
Tools
3D Printer
 |
2018-05Prusa • i3 MK3€750
• Print technology: Fused Filament Fabrication (FFF) / Fused Deposition Modeling (FDM).
• 0.4mm nozzle (easy changeable) for 1.75 mm filament.
• Build volume 11,025 cm3 (25 x 21 x 21 cm).
• Layer height (layer resolution) from 0.05 mm (50 microns).
• Accuracy: 0.01 x 0.01 x 0.005 mm (10 x 10 x 5 microns).
• Max extruder temperature: 280 °C.
• Max heated bed temperature: 120 °C.
• Supported materials: PLA, ABS, PET, HIPS, Flex PP, Ninjaflex, Laywood, Laybrick, Nylon, Bamboofill, Bronzefill, ASA, T-Glase, Carbon-fibers enhanced filaments, Polycarbonates...
• Integrated LCD and SD card controller (8GB included).
• Automatic mesh bed levelling.
• Heatbed with cold corners compensation (warpless 3D printing from any material).
• Automatic skew axes compensation.
• Hassle free PEI print surface (no glass, no glue, no ABS juice).
• Easy multicolor printing based on layer height.
• 1 kg silver PLA filament included.
• Removable magnetic spring steel sheet with PEI surface.
• EINSY RAMBo motherboard.
• Silent Trinamic drivers with 256 microstepping.
• Faster printing: 200+ mm/s.
• Sensorless homing for X and Y axes.
• Detection and recovery of shifted layers.
• Improved frame rigidity with aluminium extrusions.
• Power loss detection and recovery.
• Better cooling from both sides of the object.
• Optional WIFI with Octoprint interface included.
• Bondtech extruder drive - filament is driven from both sides.
• Optical filament flow sensor with filament presence and movement detection.
• Automatic loading of filament when filament is inserted.
• Detection of jammed extruder with pause print.
• Both extruder cooling fan and print cooling fan detect RPM. When extruder fan is blocked, the printer will stop to prevent damage of extruder. Same applies for the print cooling fan.
• Extra silent Noctua fan.
• New P.I.N.D.A. 2 probe with included thermistor - faster temperature calibration.
• Room ambient temperature sensor.
|
Uninterruptible Power Supply (UPS) (Optional)
 |
2015-10APC • Back-UPS Pro€120-300
You need to disconnect "PSU Power Panic" (black and white twisted) cable from Prusa3D i3 MK3 board. Otherwise, Prusa printer will restart after each power failure.
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
|

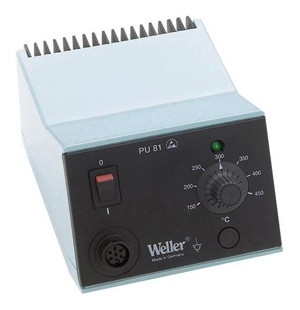

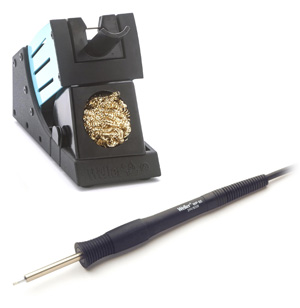

Soldering
 |
2018-12Weller • EL60/40-100€7
Electronic solder with resin-core, 100 g, Ø 1 mm
Composition: S-Sn 60 Pb 38 Cu 2, DIN EN 29454-1, 1.1.2B.
100 g spool
2018-12Kester • 44 Flux-Cored Wire€25
Kester 44 Rosin Flux is an activated rosin formula for use in flux-cored solder wire. 44 has virtually dominated the field of activated rosin core solders for well over four decades. An outstanding performance feature of this flux is the “instant-action” wetting behavior. The high mobility and fast-spreading action of this flux results in more reliable production line soldering. 44 is classified as ROM1 per J-STD-004.
Sn60Pb40 - 0.8mm - 3.3% Flux - melting range 183-190°C
Sn63Pb37 - 0.8mm - 3.3% Flux - melting point 183°C
|
 |
2020-01QuadHands • Magnetic WorkBench Helping Hands€45
• Powder coated 6" x 9" (23.86cm x 15.24cm), 4 pounds (1.8kg) steel base won't tip over even with heavy projects.
• 4 flexible magnetic based 16" (40.64cm) and 8" (20.32cm) arms can be positioned anywhere on the heavy steel base.
• Arms come with heavy duty stainless steel alligator clamps. Each clamp can be rotated 360 degrees then locked into place with the knurled thumb nut.
• Additional 8" (20.32cm), 12" (30.48cm), 16" (40.64cm) arms can be purchased as needed to suit any configuration.
• The entire system is supported on 4 rubber feet that will hold the WorkBench steady as you work.
• Includes removable silicone coverings for extra protection while working on delicate objects such as microchips and other electronics.
|
Screwdrivers
 |

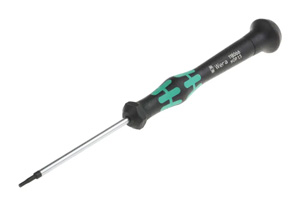

2020-01Wera Tools • Series Kraftform Micro 2054 (05118066001)€3
For M3 cup point grub screws on knobs (DIN 916).
2054 Screwdriver (1.5mm) for hexagon socket screws for electronic applications.
High-quality steel micro screwdriver
For precision & mechanical work
Extra durable
Excellent grip
Reduced hand fatigue
Hex-Plus allows socket head screws to live longer
Power zone with integrated soft grip
Free spin cap
Anti-roll off
Corrosion protected
Chemical resistance
|
|
2020-01Wera Tools • Series Kraftform Micro 2054 (05118070001)€3
For M3 cap head screws (DIN 912) for IKEA OLOV adustable leg holder.
2054 Screwdriver (2.5mm) for hexagon socket screws for electronic applications.
High-quality steel micro screwdriver
For precision & mechanical work
Extra durable
Excellent grip
Reduced hand fatigue
Hex-Plus allows socket head screws to live longer
Power zone with integrated soft grip
Free spin cap
Anti-roll off
Corrosion protected
Chemical resistance
|
Wire Stripping and Cutting Tools
 |
2016-05C.K Tools • Wire Stripping Pliers T3894€18
For safe and damage-free stripping of fine, insulated solid wires in applications where it is critical to prevent damage from electro-static charge. Suitable for cutting soft copper wires.
Stripping capacities mm: 0.4, 0.5, 0.6, 0.8, 1.0, 1.3
Stripping capacities AWG: 26, 24, 22, 20, 18, 16
|
 |
2016-05C.K Tools • Side Cutters T3887€14
Precision side cutters for fine cutting applications Sharp, precision ground cutting edges with an extra full flush cut Suitable for cutting soft copper wires of up to 1.6mmØ / 14AWG Tapered and relieved head for access in narrow and confined spaces.
|
Jocys.com
Comments • 0
|
|
|
PETG Filament
PETG Filament
 |
I would not recommend to print parts from ABS (shrinkage is too big) or PLA (low heat resistance). Light colour prints are quite demanding and require higher quality filament and printer precision, because light filaments don't mask print imperfections as well, as black filaments do.
2018-05Prusa3D • Jet Black Prusament PETG 1.75€32
2020-08MCPP • BasicFil PETG 1.75€21
2020-08Amazon • AmazonBasics PETG 1.75€21
From identical design of spools, silica-gel sachets, temperature recommendations, printing results, similar prices on Amazon and that both are manufactured in Netherlands... AmazonBasics PETG filament can be rebranded BasicFil PETG by Mitsubishi Chemical Performance Polymers (MCPP) Netherlands B.V., one of the world's largest polymer based 3d filament manufacturers.
From design of the spools, 3DPrintz PETG filament can be rebranded PETG K5 by NorthBridge3D (China) sub-brand Kexcelled (China). They claim, that they are "The largest 3D filament manufacturer in East China".
 |
 |

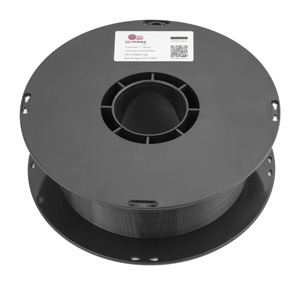

3DPrintz
Prusa3D / Filament-PM
Real-Filament
3DPrintz |
|
 |
2018-05SHL • Isopropanol / Isopropyl Alcohol / IPA€15
For preparing-cleaning heated printer bed... Double-sided Textured PEI Powder-coated Spring Steel Sheet before printing with PETG filament.
For thin parts to stick correctly, you may need to adjust height of first layer perfectly and to reduce "Elephant foot compensation" from default value 0.2mm... to 0.1mm.
 Modified settings: PrusaSlicer > Print Settings > 0.20 QUALITY MK3 > Advanced > Slicing...
Isopropanol 99.9% / Isopropyl Alcohol / IPA
Manufacturer Part Number: 1000-ISO-TRIGGER
Child Proof Cap
Natural Trigger spray cap for bottles with a 28mm neck (OFF, Spray, Stream)
1 Litre
|
 |
2018-05PC Johnson • Windex Original Glass Cleaner€8
For preparing-cleaning heated printer bed... Spring Steel Sheet with Smooth Double-sided PEI before printing with PETG filament.
Water: Water
2-Hexoxyethanol:Cleaning Agent
Isopropanolamine: Cleaning Agent
Ammonium Hydroxide: Cleaning Agent
Lauryl Dimethyl Amine Oxide: Wetting Agent
Sodium Dodecylbenzene Sulfonate: Wetting Agent
Fragrance: Fragrance
Liquitint® Sky Blue Dye: Dye
|
Jocys.com
Comments • 0
|
|
|
Printing Settings
Printing Settings for PETG Filament on TEXTURED PEI Powder-coated Spring Steel Sheet
For BIG parts to stick on TEXTURED PEI Powder-coated Spring Steel Sheet, I increased bed temperature for AmazonBasic • BasicFil PETG filaments from recommended 60-80°C to 85°C (First layer) and 90°C (Other layers). I printed BIG parts in my own Temperature Controlled Enclosure. Temperature inside enclosure was 35°C. E3D V6 HotEnd is rated to 40°C ambient operating temperature. As you approach that temperature, cooling efficiency is reduced, allowing more heat up past the heatbreak. This can cause low temperature filament to soften in the mechanism to cause feed problems.
Temperature
|
 PrusaSlicer ►  Filament Settings ►  Generic PETG (modified) ► Filament ►
Temperature ►
Nozzle:
 First layer: 240 °C
 Other layers: 240 °C
Bed:
First layer: 85 °C
Other layers: 90 °C
Layers and Perimeters
PrusaSlicer ►  Print Settings ► 0.20 QUALITY MK3 (modified) ►  Layers and perimeters ►
Vertical shells ►
Perimeters: 6 (minimum)
Quality (slower slicing) ►
Ensure vertical shell thickness: disabled - I had problems with thin 45° hanging angles when it was enabled.
Advanced ►
Seam position: Rear - created line at the back of the parts, but front and side surfaces were perfectly smooth.
Infill
PrusaSlicer ► Print Settings ► 0.20 QUALITY MK3 (modified) ►  Inflill ►
Infill ►
Fill density: 80%
Speed
PrusaSlicer ► Print Settings ► 0.20 QUALITY MK3 (modified) ►  Speed ►
Speed for print moves ►
All speeds (except greyed out - locked fields): 25 mm/s or % - slower printing speeds (10-25-180-400), results in smoother and glossier surfaces without matte areas, reduces printing noise and vibrations - lesser probability for corners of big parts to unstick from heated bed, because of shrinking.
Modifiers ►
First layer speed: 10 mm/s or % - for better adhesion.
Acceleration control ►
All speeds (except greyed out - locked fields): 400 mm/s²
Auto speed (advanced) ►
Max print speed: 25 mm/s
Custom G-Code
PrusaSlicer ►  Printer Settings ► Original Prusa i3 MK3S (modified) ► Custom G-code ►
Start G-code ►
G0 Z50 ; ADDED LINE - NOZZLE BLOB - Z up 50 mm to clean filament blob from nozzle before printing.
G4 S5 ; ADDED LINE - NOZZLE BLOB - Pause 5 seconds to clean the nozzle.
G0 Z-50 ; ADDED LINE - NOZZLE BLOB - Z down 50 mm to initial position.
G0 Z0.5 ; ADDED LINE - INTRO LINE - Z up 0.5 mm for less intro line adhesion to prevent steel sheet plate surface from wearing.
G0 Y-1 ; ADDED LINE - INTRO LINE - Y shift 2 mm intro line default start position to prevent steel sheet plate surface from wearing.
|
Jocys.com
Comments • 0
|
|
|
STL Files
STL Files
For better quality and safety... I printed majority of parts separately.
 |
To split group and to remove some parts:
1. Open “*.STL” file in PrusaSlicer Edition.
2. Click on [ Split to objects ] button.
3. Select parts one by one, which you don't want to print.
4. Press [ Del ] key on keyboard.
|
 |
You can edit STL files with free and open source 3D creation suite Blender.
|
 |
Import “*.STL” file:
- Blender 2.8 ► File ► Import ► Stl (.stl).
If imported STL object is not visible:
- Select imported object in “Scene Collection” list (top-right panel).
- In “Object Mode“ (top-left drop-down) ► Object ► Set Origin ► Geometry to Origin.
|
 |
Small_Box.STL
Small Box Bottom for Velcro - Fill and Bridging angle: 45°
5 x Small Box Bottom for Attachments - Fill and Bridging angle: 45°
5 x Small Box Enclosure - Fill angle: 0°
Small Box Holder for IKEA OLOV adustable leg
|
 |
Small_Box_Parts.STL
Small Box Back Plate with 8mm x 2 Holes
Small Box Back Plate with 6mm x 2 Holes
4 x Small Box Back Plate with 8mm x 3 Holes
Small Box Back Plate with 6mm x 3 Holes
1 x Small Box Back Plate with 8mm x 4 Holes
Small Box Back Plate with 6mm x 4 Holes
1 x Soldering Helper
|
 |
Knobs.STL
Knurled shaft has 18 teeth, so you can mount knurled knob in 20° angle fixed positions only. If you want to align knob to various angles, you can use different knob adapters.
3 x Knob Cover with Triangle Pointer - Seam position: Random
2 x Knob Cover with Circle Pointer - Seam position: Random
3 x Triangle Pointer Insert
2 x Circle Pointer Insert
1 x Pointer Insert Helper Height 0.4mm
Line 1: 15mm shaft adapters (-4mm plate)
2 x Line 2: 15mm shaft adapters (-2mm plate) - For Bourns PTD902 Potentiometer ► Adapter 3
3 x Line 3: 20mm shaft adapters (-4mm plate) - For Alpha SR2511F Switch ► Adapter 1
Round shaft
Knurled shaft 0° - Knob arrow aligned with teeth spikes (0°).
Knurled shaft ±10° - Knob arrow aligned between teeth spikes (to rotate knob ±10°)
Knurled Shaft +5°, -5° - Knob arrow aligned 5° after or before teeth spikes (to rotate knob ±15° or ±5°).
|
 |
Connectors_and_Spacers.STL
1 x 35° Angle Connector
1 x Connector for Small Box Plates
2 x Spacer from 9mm to 7mm Hole - For Bourns PTD902 Potentiometer
Spacer from 11mm to 7mm Hole
Spacer from 11mm to 8mm Hole
|
 |
Small_Box_Plate_1.STL
1 x Small Box Plate for 1 Box
Small Box Plate with Extended Front for 1 Box
|
 |

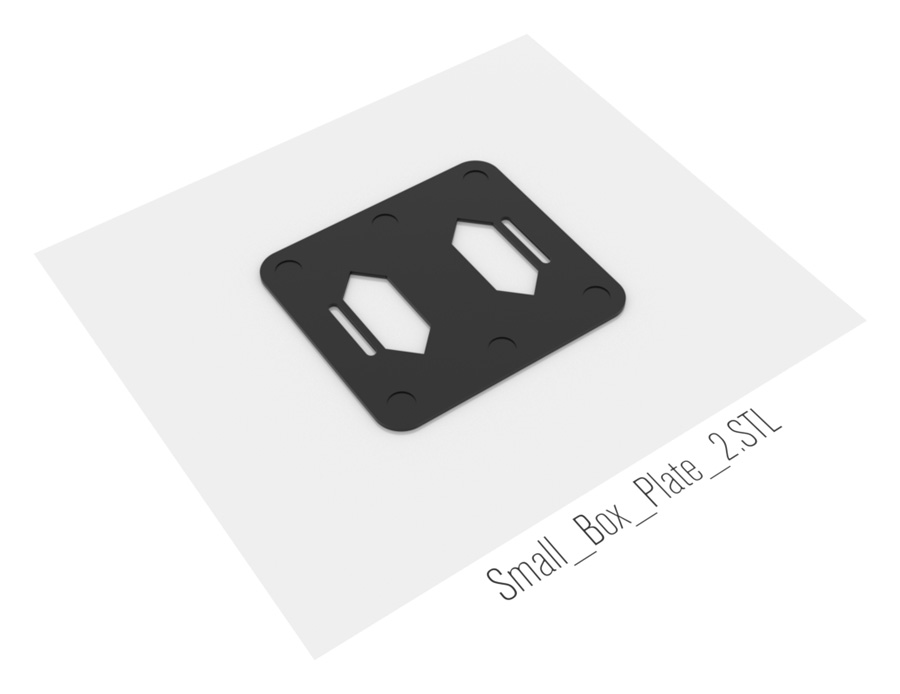

Small_Box_Plate_2.STL
Small Box Plate for 2 Boxes
|
 |
Small_Box_Plate_3.STL
Small Box Plate for 3 Boxes
|
 |

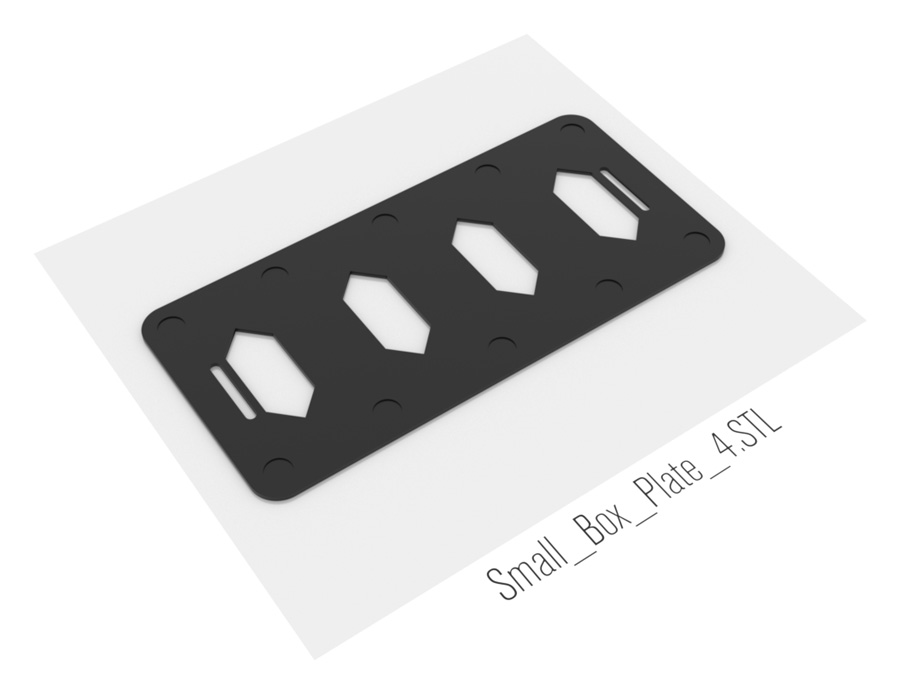

Small_Box_Plate_4.STL
1 x Small Box Plate for 4 Boxes
|
 |
Angle_Adapter_1.STL
Single box angle adapter doesn't work well, if pad is not connected to other boxes with connector. Back is not heavy enough to maintain stability, when pushing on the knob under angle.
1 x 35° Angle Adapter for 1 Box
|
 |
Angle_Adapter_2.STL
35° Angle Adapter for 2 Boxes
|
 |
Angle_Adapter_3.STL
35° Angle Adapter for 3 Boxes
|
 |
Angle_Adapter_4.STL
1 x 35° Angle Adapter for 4 Boxes
|
Jocys.com
Comments • 0
|
|
|
